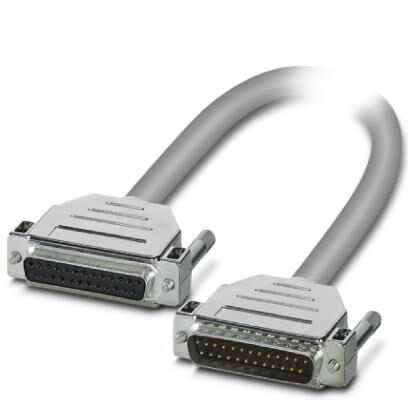

Phoenix Contact 2302133 Shielded Round Cable
The Phoenix Contact 2302133 is a shielded round cable designed for robust and reliable data transmission in industrial environments. It connects a D-SUB socket strip (1x 25-position) to a D-SUB pin strip (1x 25-position), offering a 1-meter cable length. The cable is suitable for both fixed and flexible installations, with a wide operating temperature range and robust construction to withstand harsh conditions. It's commonly used in automation systems and data acquisition applications where signal integrity and durability are critical.
Phoenix Contact 2302133 Shielded Round Cable Specifications:
- Packing unit: 1 pc
- GTIN: 4017918893095
- Weight per Piece (excluding packing): 240.000 g
- Custom tariff number: 85444290
- Country of origin: Hungary
- Ambient temperature (operation) - fixed: -40 °C ... 70 °C
- Ambient temperature (operation) - flexible: -10 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Maximum altitude: ≤ 2000 m
- Degree of protection: IP20 (fixed), ≥ IP54 (Installation location)
- Max. permissible operating voltage AC: 25 V
- Max. permissible operating voltage DC: 60 V
- Max. current carrying capacity per path (50 °C): 2 A
- Max. current carrying capacity per path (70°C): 1 A
- Cable length: 1 m
- External cable diameter: 9.8 mm ±0.5 mm
- Single wire, cross section: 0.25 mm²
- Single wire, cross section [AWG]: 24
- Single wire, number of litz wires: 14
- Single wire, material: Cu uninsulated
- Wire diameter incl. insulation: 1.2 mm ±0.05 mm
- Smallest bending radius, fixed installation: 82 mm
- Smallest bending radius, movable installation: 155 mm
- Bending cycles: 5000 (at a radius of ≥ 15x outside diameter)
- Shielding: yes
- Shielding type: Tinned copper-braided shield, approx. 85% covering
- Cable insulation resistance: ≥ 20 MΩ/km (at 20 °C)
- Cable resistance: ≤ 80 Ω/km (at 20 °C)
- Outer sheath material: Semi-rigid PVC
- Outer sheath color: gray
- Nominal operating mode: 100% operating factor
- Connection method (Field level): D-SUB pin strip
- Number of connections (Field level): 1
- Number of positions (Field level): 25
- Torque (Field level): 0.2 Nm
- Insertion/withdrawal cycles (Field level): > 200
- Connection method (Controller level): D-SUB socket strip
- Number of connections (Controller level): 1
- Number of positions (Controller level): 25
- Torque (Controller level): 0.2 Nm
- Insertion/withdrawal cycles (Controller level): > 200
- Flame resistance: UL VW-1, CSA FT-1
- Resistance to oil: against occasional splashes
- Gasoline resistance: against occasional splashes
- Connection in acc. with standard: CUL
- Designation: Air clearances and creepage distances
- Standards/regulations: DIN EN 50178
- Rated insulation voltage: 125 V
- Rated surge voltage: 1.2 kV
- Insulation: Functional insulation
- Pollution degree: 2
- Overvoltage category: II
- China RoHS: Environmentally Friendly Use Period = 50
