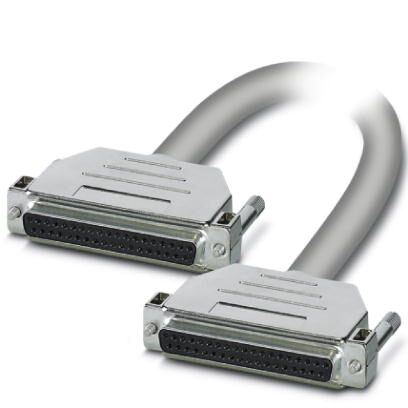

Phoenix Contact 2305512 D37 Sub Connector Cable
The Phoenix Contact 2305512 is a shielded circular cable assembly designed for reliable data transmission in industrial environments. It incorporates D-SUB socket strips on both ends, offering 37 positions for versatile connectivity. The cable is constructed with a single wire cross-section of 0.25 mm² (24 AWG) and features a tinned copper-braided shield for enhanced noise immunity. Its robust construction and compliance with standards like IEC 60332-1 and DIN VDE 0482 Part 332-1 make it suitable for demanding applications requiring secure and consistent data transfer. Common uses include connecting controllers to peripherals, facilitating data acquisition, and ensuring reliable communication in automated systems.
Phoenix Contact 2305512 D37 Sub Connector Cable Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 499.1 g
- Custom tariff number: 85444290
- Country of origin: Germany
- Nominal voltage UN: 125 V AC/DC
- Max. current carrying capacity per path: 2 A
- Max. conductor resistance: ≤ 0.09 Ω/m
- Length of cable: 2 m
- Single wire, cross section: 0.25 mm²
- Single wire, cross section [AWG]: 24
- External diameter: 12 mm
- Shielding: yes
- Shielding material: Tinned copper-braided shield, approx. 85% covering
- Insertion/withdrawal cycles: > 200
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Flame resistance: IEC 60332-1, DIN VDE 0482 Part 332-1
- Connection method (module side): D-SUB socket strip
- Number of connections (module side): 1
- Number of positions (module side): 37
- Connection method (controller side): D-SUB socket strip
- Number of connections (controller side): 1
- Number of positions (controller side): 37
- Connection in acc. with standard: CUL
- eCl@ss 4.0: 27060306
- eCl@ss 4.1: 27060306
- eCl@ss 5.0: 27061801
- eCl@ss 5.1: 27061801
- eCl@ss 6.0: 27061801
- eCl@ss 7.0: 27061801
- eCl@ss 8.0: 27249205
- ETIM 2.0: EC000237
- ETIM 3.0: EC000237
- ETIM 4.0: EC000237
- ETIM 5.0: EC000237
- UNSPSC 6.01: 26121620
- UNSPSC 7.0901: 26121620
- UNSPSC 11: 26121620
- UNSPSC 12.01: 26121620
- UNSPSC 13.2: 26121620
- Approvals: UL Recognized / cUL Recognized / CSA / EAC / cULus Recognized
