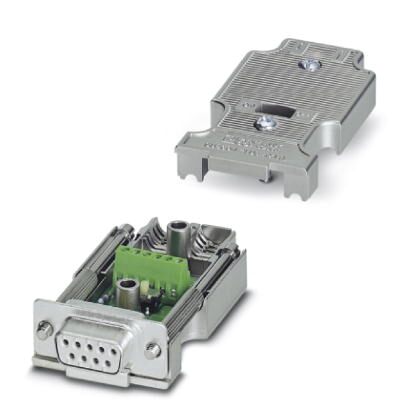

Phoenix Contact 2306566 D-SUB bus connector
The 2306566 is a 9-position female D-SUB connector with an axial configuration, featuring two cable entry points. It supports a nominal voltage of 5V and a maximum current of 100mA. This connector is compatible with CAN, CANopen, and SafetyBus-P bus systems. The pin assignments include pins 2, 3, and 7. It connects via a D-SUB socket with a screw-type PCN connection. The dimensions are 58.2mm in length, 17mm in width, and 31.5mm in height, suitable for cable diameters between 7.6mm and 8.4mm.
Phoenix Contact 2306566 D-SUB bus connector Specifications:
- Number of Positions: 9
- Connector Type: Female D-SUB
- Configuration: Axial
- Cable Entry: Two points
- Bus System Compatibility: CAN, CANopen, SafetyBus-P
- Pin Assignment: Pins 2, 3, 7
- Nominal Voltage: 5V
- Maximum Current: 100mA
- Connector Connection: Screw-type PCN
- Dimensions: Length 58.2mm, Width 17mm, Height 31.5mm
- Cable Diameter Range: 7.6mm to 8.4mm
Buy the Phoenix Contact 2306566 – Reliable CAN Bus Connector for Industrial Applications
Purchase the Phoenix Contact 2306566 D-SUB bus connector online today and ensure a secure, high-quality connection for your CAN, CANopen, and SafetyBus-P systems. Featuring axial configuration, two cable entries, and screw-type connections, this connector offers excellent EMC performance and compatibility with cables measuring 7.6 to 8.4mm in diameter. Suitable for industrial environments, it guarantees durability and stable data transmission, making it the ideal solution for your automation and control needs. Order now for fast delivery and reliable operation.
Buy Phoenix Contact 2306566 now and experience unmatched reliability and performance in your industrial data communication setups.
Frequently Asked Questions
Where can I buy Phoenix Contact 2306566?
You can click on the BUY or RFQ button to purchase 2306566 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2306566?
You can download the 2306566 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2306566?
Phoenix Contact
