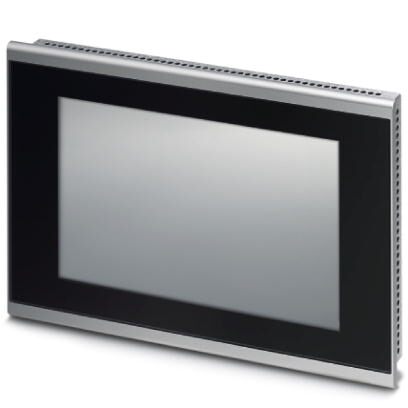

Phoenix Contact 2403460 9" TFT Touch Panel
The Phoenix Contact TP 3090W/P is a high-performance industrial touch panel designed for demanding environments. Its glass front and sturdy construction ensure durability, while the powerful processor and expansive screen resolution (800x480) provide fast response times and clear visuals. The integrated Visu+ software simplifies visualization tasks, and the panel's flexible connectivity options, including Ethernet and USB, allow for seamless integration into various systems. Ideal for factory automation, process control, and HMI applications, the TP 3090W/P offers a reliable and user-friendly interface for operators.
Phoenix Contact 2403460 9" TFT Touch Panel Specifications:
- Packing unit: 1 STK
- Custom tariff number: 84714100
- Country of origin: Germany
- Display: 22.9 cm/9" TFT
- Screen resolution: 800 x 480 Pixel(s) (WVGA)
- Backlighting: LED
- Display backlight MTBF: 70000 h
- Touch technology: Projective-capacitive (PCAP)
- Colors: 16.7 million colors
- Processor: ARM® Cortex®-A8, 1000 MHz
- Operating systems: Windows® Embedded Compact 7
- User software: Visu+
- RAM: 512 MB LPDDR RAM
- Mass storage: 1 GB NAND-Flash
- Network: 1 x Ethernet (10/100 Mbps), RJ45
- Interfaces: 2x USB host 2.0
- Bus system: without
- Optional interfaces: SD slot
- Realtime clock: Yes (battery-backed)
- Service life of battery: 5 years (typical)
- Material front plate: Aluminum (natural anodized)
- Housing material: Steel sheet, zinc-plated
- Mounting type: Front installation
- Weight: 1800 g
- Degree of protection: IP65 (front), IP20 (back)
- NEMA: 4X
- Ambient temperature (operation): 0 °C ... 50 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Permissible humidity (operation): 20 % ... 85 % (non-condensing)
- Permissible humidity (storage/transport): 20 % ... 85 % (non-condensing)
- Vibration (operation): DIN EN 60068-2-6
- Shock: DIN EN 60068-2-27
- Supply voltage: 24 V DC
- Supply voltage range: 18 V DC ... 30 V DC
- Typical current consumption: typ. 0.8 A
- Power consumption: typ. 19.2 W
- Power supply unit: 24 V DC ±20 %
