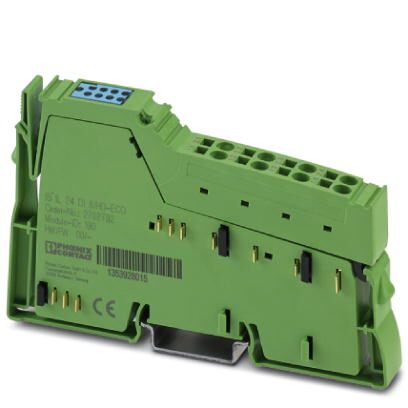

Phoenix Contact 2702792 Digital Input Terminal
This inline ECO digital input terminal features 8 digital inputs operating at 24 V DC with a 1-wire connection method. It supports a transmission speed of 500 kbps over the local bus. The device has an IP20 protection rating and includes an inline connector for easy integration. Designed for inline stations, it is suitable for acquiring digital signals in automation systems. Its compact design measures 119.8 mm in height and is mounted on a DIN rail. It supports operating conditions from 0°C to +55°C and consumes a maximum of 30 mA from the local bus, ensuring reliable performance in industrial environments.
Phoenix Contact 2702792 Digital Input Terminal Specifications:
- Number of digital inputs: 8
- Input voltage: 24 V DC
- Connection technology: 1-wire
- Transmission speed: 500 kbps
- Protection class: IP20
- Mounting type: DIN rail
- Height: 119.8 mm
- Operating temperature range: 0°C to +55°C
- Ambient humidity: 10% to 95% (DIN EN 61131-2)
- Supply voltage: Segment circuit Us 24 V DC (nominal), Max current from Us 5.5 mA
- Power supply for electronics: U; 7.5 VDC, Max. current 30 mA
- Isolation voltage: 500 V AC for bus logic and GND
- Net weight: 83.38 g
Buy the Phoenix Contact Series ECO Digital Input: 2702792
Enhance your automation setup with this Phoenix Contact digital input terminal featuring eight channels at 24 V DC. Designed for easy DIN rail mounting, it offers reliable signal acquisition and seamless integration with local bus systems operating at 500 kbps. The device's robust IP20 protection ensures durability in industrial environments, while its compact size of 119.8 mm height makes it ideal for space-constrained applications. Simplify your installation process with included inline connectors and enjoy dependable performance across operating conditions from 0°C to +55°C.
Get Phoenix Contact 2702792 today—built for industrial digital signal acquisition with reliable IP20 protection and DIN rail mounting.
