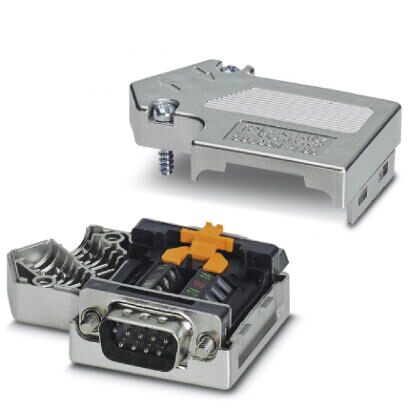

Phoenix Contact 2708245 D-Sub Connector
This ProfiBus D-sub plug connector with 9 positions features a cable entry designed for industrial automation. Made from durable ABS with metal plating, it supports secure, reliable connections for PROFIBUS DP systems up to 12 Mbps. The connector includes a switchable termination resistor, screw connection terminal blocks, and is resistant to operating temperatures from -20°C to 75°C. It is compliant with UL, cUL, CSA, and EAC standards, with a robust design suitable for harsh environments and high-performance data communication in automation networks.
Phoenix Contact 2708245 D-Sub Connector Specifications:
- Housing Material: ABS, metal-plated
- Number of Positions: 9
- Cable Entry: < 35°
- Pin Assignment: 3, 5, 6, 8
- Nominal Current: 100 mA
- Ambient Temperature (Operation): -20°C ... 75°C
- Ambient Temperature (Storage/Transport): -25°C ... 80°C
- Altitude: Up to 5000 m
- Standards: UL Recognized, cUL Recognized, CSA, EAC
- Housing Dimensions: 39.4 mm x 16.6 mm
- Connection Type: Screw terminal blocks
- Certification: ATEX #113 G Ex nA IC T4 Gc X
Buy the Buy Phoenix Contact D-SUB Bus Connector Part Number 2708245 Online
Order the Phoenix Contact D-Sub Connector with 9 positions and cable entry today for high-performance industrial communication. This professional-grade connector supports PROFIBUS DP systems up to 12 Mbps, featuring robust ABS metal-plated housing and screw terminal connection for secure wiring. It is engineered to operate reliably in temperature ranges from -20°C to 75°C and meets UL, cUL, CSA, and EAC standards for safety and compliance. Ideal for automation equipment, it ensures long-lasting, secure connections in demanding environments.
Get Phoenix Contact 2708245 today—designed for industrial communication with reliable, shielded connections and switchable termination resistor.
Frequently Asked Questions
Where can I buy Phoenix Contact 2708245?
You can click on the BUY or RFQ button to purchase 2708245 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2708245?
You can download the 2708245 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2708245?
Phoenix Contact
