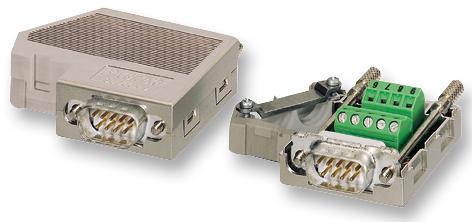

Phoenix Contact 2744403 PROFIBUS Connector
The SUBCON-PLUS-PROFIB/PG is a versatile PROFIBUS connector designed for industrial automation applications. It supports data transmission up to 12 Mbit/s with an integrated terminating resistor that can be connected externally. The connector features a D-SUB female port for programming device connections and utilizes a spring-cage connection system for secure wiring. Made from durable ABS and metal-plated components, it operates within -20°C to 70°C, supporting cable diameters up to 8.4mm. Its robust design ensures reliable communication in harsh industrial environments.
Phoenix Contact 2744403 PROFIBUS Connector Specifications:
- Nominal voltage: 60 V AC/DC
- Nominal current: 1A
- Bus system: PROFIBUS up to 12 Mbit/s
- Insertion/withdrawal cycles: >200
- Max cable diameter: 8.4mm
- Min cable diameter: 7.6mm
- Housing material: ABS, metal-plated
- Pin assignment: 3, 6, 5, 8
- Connection type: D-SUB male connector, PCB, spring-cage connection
- Number of positions: 9
- Conductor cross-section, rigid: min 0.12 mm², max 0.5 mm²
- Wire gauge: min 28 AWG, max 20 AWG
- Stripping length: 5mm
- Tightening torque: 0.4Nm
- Ambient temperature: -20°C to 70°C
Buy the Buy Phoenix Contact PROFIBUS Connector Up to 12 Mbit/s Part Number 2744403 Online
Discover the high-quality PROFIBUS connector designed for seamless industrial communication. With an integrated terminating resistor, D-SUB female port, and spring-cage connection system, it offers robust performance up to 12 Mbit/s. Made from durable ABS and metal-plated materials, it withstands harsh environments from -20°C to 70°C. Easy to install with secure wiring, it’s ideal for automation systems requiring reliable and precise data transmission. Purchase this dependable connector online today for your industrial projects.
Order your Phoenix Contact SUBCON-PLUS-PROFIB/PG today and ensure reliable industrial communication with durable, high-quality PROFIBUS connectors.
