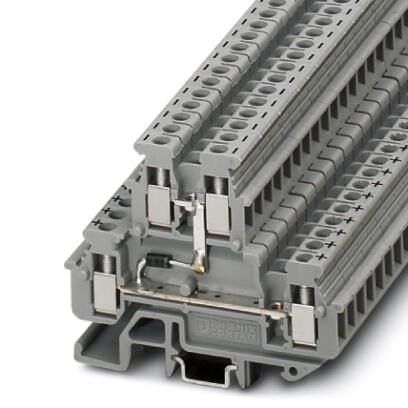

Phoenix Contact 2800570 Feed-Through Terminal Block
This mini feed-through terminal block features an integrated diode, rated for 500 V and 24 A. Its screw connection supports wire cross sections from 0.2 mm² to 4 mm² and AWG sizes 24 to 12. Compact and space-saving, it measures approximately 62 mm in length and 5.2 mm in width, with a gray finish. Suitable for mounting on NS 15, NS 35/7.5, and NS 35/15 DIN rails, it offers reliable potential distribution with clear terminal marking and plug-in bridges, ideal for switching tasks in industrial automation systems.
Phoenix Contact 2800570 Feed-Through Terminal Block Specifications:
- Maximum load current: 24 A
- Nominal voltage: 500 V
- Diode: 1N 4007, reverse voltage: 1300 V, max. continuous current: 0.5 A
- Dimensions: Length 62 mm, Width 5.2 mm
- Connection: Screw terminal, compatible with wire sizes 0.2 mm² to 4 mm², AWG 24-12
- Material: Gray finish
- Mounting: NS 15, NS 35/7.5, NS 35/15 DIN rails
- Standards: IEC 60947-7-1
- Features: Integrated diode, compact design, potential distribution with plug-in bridges
Buy the PhoenixContact MBKKB 2,5-DIO/U-O – Reliable Feed-Through Terminal Block for Industrial Applications
Enhance your automation system with the PhoenixContact Feed-Through Terminal Block featuring integrated diode for efficient switching. This compact, DIN rail mountable device supports wire sizes from 0.2 mm² to 4 mm² and AWG 24 to 12, providing reliable performance at 24 A and 500 V. Its precise terminal marking and plug-in bridges simplify potential distribution, saving space and improving installation efficiency. Perfect for industrial automation and control systems, order online today for fast delivery and dependable quality.
Order your PhoenixContact Series MBKKB 2,5-DIO/U-O today and get a reliable feed-through terminal block with integrated diode, ideal for industrial automation projects.
