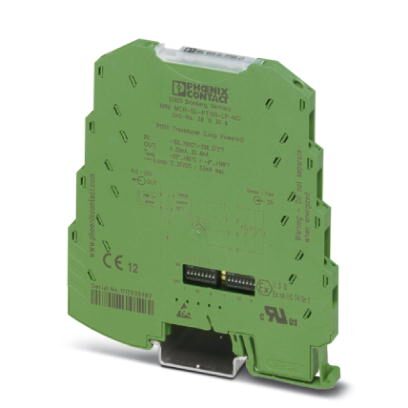

Phoenix Contact 2810308 Temperature Transducer Pt100
The PHOENIX CONTACT MINI MCR-SL-PT100-LPNC is a highly compact, loop-powered temperature transducer ideal for industrial applications requiring electrical isolation, signal conversion, amplification, and filtering of Pt100 sensor signals. This transducer operates without needing an external power supply, simplifying installation and reducing power consumption. It's configurable via DIP switches, allowing for flexibility in sensor setup. The diagnostic LED provides a clear indication of errors, ensuring reliable temperature monitoring in various industrial processes, including process control, environmental monitoring, and building automation.
Phoenix Contact 2810308 Temperature Transducer Pt100 Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 80.0 g
- Custom tariff number: 85437090
- Country of origin: Germany
- Width: 6.2 mm
- Height: 93.1 mm
- Depth: 102.5 mm
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Maximum altitude: ≤ 2000 m
- Degree of protection: IP20
- Sensor types (RTD) that can be used: Pt 100 (IEC 60751/EN 60751)
- Sensor input current: 1 mA (constant)
- Connection method: 2, 3, 4-wire
- Number of outputs: 1
- Current output signal: 4 mA ... 20 mA
- Max. output current: 23 mA (output limit)
- Load/output load current output: (Usupply- 12 V) / 22 mA
- Designation: Loop-powered
- Supply voltage range: 12 V DC ... 30 V DC
- Max. current consumption: < 4.5 mA (without signal current)
- Power consumption: < 150 mW (without signal current)
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Stripping length: 12 mm
- Transmission error in the set measuring range: ((90 K / set measuring range [K]) + 0.05)%
- Transmission error in the full measuring range: ≤ 0,25 %
- Maximum temperature coefficient: < 0.02 %/K
- Linearity error: < 0.05 % (for full measuring range)
- Electrical isolation: Basic insulation according to EN 61010
- Overvoltage category: II
- Degree of pollution: 2
- Rated insulation voltage: 50 V AC/DC
- Test voltage, input/output/supply: 1.5 kV (50 Hz, 1 min.)
- Noise emission: EN 61000-6-4
- Noise immunity: EN 61000-6-2
- Color: green
- Housing material: PBT
- Mounting position: any
- Conformance: CE-compliant
- ATEX: II 3 G Ex nA IIC T4 Gc X
- UL, USA / Canada: UL 508 Recognized
- EMC data - Electromagnetic RF field: EN 61000-4-3
- EMC data - Fast transients (burst): EN 61000-4-4
- EMC data - Conducted interferences: EN 61000-4-6
