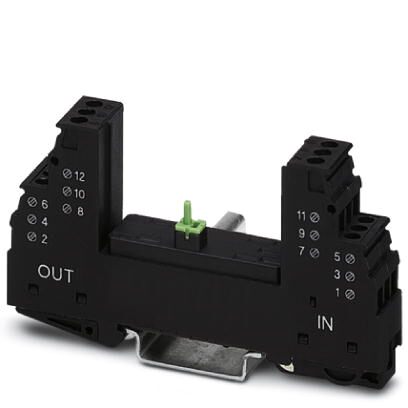

Phoenix Contact 2839376 Surge Protection Base Element
This surge protection base element is designed for four signal wires, featuring a gas-filled surge arrester for effective surge suppression. Compatible with NS 35/7.5 and NS 35/15 terminal blocks, it ensures reliable protection with a compact 17.5 mm housing width. The device allows impedance-neutral disconnection for testing and maintenance while maintaining the protective circuit integrity. Suitable for industrial automation, it provides consistent plug-in signal circuit protection, facilitating easy checks with CHECKMASTER. Its robust construction supports operation from -40°C to 85°C, and it complies with UL, cUL, EAC, and GL approvals for added safety and reliability.
Phoenix Contact 2839376 Surge Protection Base Element Specifications:
- Dimensions: Width 17.5 mm, compatible with NS 35/7.5 and NS 35/15 terminal blocks
- Operating temperature range: -40°C to 85°C
- Degree of protection: IP20
- Mounting type: DIN rail
- Connection: For four signal wires with common reference potential
- Protection: Gas-filled surge arrester between connections 3-4 (GND) and 9-10
- Material: Plastic housing, metal contacts
- Certifications: UL Listed, cUL Listed, EAC, GL
- Weight: 57.13 g
- Classifications: eCl@ss 27130803, UNSPSC 39121610
Buy the Phoenix Contact Series PT Surge Protection Base Element: 2839376
Enhance your industrial automation system with the Phoenix Contact surge protection base element, providing reliable surge suppression for four signal wires. Featuring a gas-filled surge arrester between connections 3-4 and 9-10, it offers high efficiency and easy maintenance. Its compact design fits on NS 35/7.5 and NS 35/15 terminal blocks, with a width of 17.5 mm, and supports operation from -40°C to 85°C. UL and cUL approved, it guarantees safety and durability for demanding environments.
Order your Phoenix Contact Series PT surge protection base element today and ensure reliable surge suppression for your industrial signal circuits.
Frequently Asked Questions
Where can I buy Phoenix Contact 2839376?
You can click on the BUY or RFQ button to purchase 2839376 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2839376?
You can download the 2839376 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2839376?
Phoenix Contact
