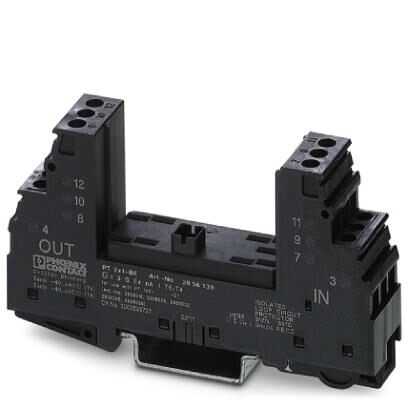

Phoenix Contact 2856139 Surge Protection Base Element
The PHOENIX CONTACT PT 2X1-BE surge protection base element provides a reliable solution for protecting signal circuits from voltage surges. Designed for installation with protective plugs, this base element ensures consistent plug-in signal circuit protection. Its two-piece design simplifies maintenance, and the base element remains an integral part of the installation. The module is mounted on DIN rails and features a V0 flammability rating, making it suitable for a wide range of industrial applications where signal integrity and protection are critical. It is ideal for applications requiring impedance-neutral disconnection for testing and maintenance.
Phoenix Contact 2856139 Surge Protection Base Element Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 49.57 g
- Custom tariff number: 85363010
- Country of origin: Germany
- Height: 89.8 mm
- Width: 17.7 mm
- Depth: 52 mm
- Horizontal pitch: 1 Div.
- Complete module height: 90 mm
- Complete module width: 17.7 mm
- Complete module depth: 65.5 mm
- Ambient temperature (operation): -40 °C ... 85 °C
- Degree of protection: IP20
- Flammability rating according to UL 94: V0
- Color: black
- Mounting type: DIN rail: 35 mm
- Type: DIN rail module, two-section, divisible
- Number of positions: 2
- Nominal current IN: 300 mA
- Connection method: Screw connection
- Connection type IN: Screw terminal blocks
- Connection type OUT: Screw terminal blocks
- Screw thread: M3
- Tightening torque: 0.5 Nm
- Stripping length: 8 mm
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 12
- eCl@ss 4.0: 27140201
- eCl@ss 4.1: 27130801
- eCl@ss 5.0: 27130801
- eCl@ss 5.1: 27130801
- eCl@ss 6.0: 27130803
- eCl@ss 7.0: 27130803
- eCl@ss 8.0: 27130803
- ETIM 2.0: EC000472
- ETIM 3.0: EC000472
- ETIM 4.0: EC000472
- ETIM 5.0: EC000472
- UNSPSC 6.01: 30212010
- UNSPSC 7.0901: 39121610
- UNSPSC 11: 39121610
- UNSPSC 12.01: 39121610
- UNSPSC 13.2: 39121620
