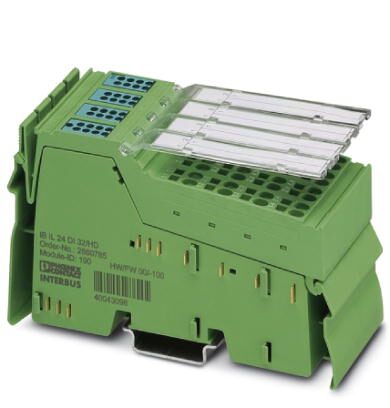

Phoenix Contact 2862835 Inline Digital Input Terminal
The PHOENIX CONTACT IB IL 24 DI 32/HD-PAC (2862835) is a robust inline digital input terminal block specifically engineered for industrial automation applications. This terminal block provides 32 digital inputs, enabling the acquisition of signals from various sensors and devices. It supports single-wire connection technology, simplifying wiring and reducing installation time. Diagnostic and status indicators provide real-time feedback on input status. The terminal block is designed for integration within Inline stations and is suitable for use in potentially explosive areas, adhering to relevant safety standards. Its robust construction and reliable performance make it ideal for demanding industrial environments.
Phoenix Contact 2862835 Inline Digital Input Terminal Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 218.0 g
- Custom tariff number: 85389091
- Country of origin: Germany
- Width: 48.8 mm
- Height: 119.8 mm
- Depth: 71.5 mm
- Ambient temperature (operation): -25 °C ... 55 °C
- Ambient temperature (storage/transport): -25 °C ... 85 °C
- Permissible humidity (operation): 10 % ... 95 % (according to DIN EN 61131-2)
- Permissible humidity (storage/transport): 10 % ... 95 % (according to DIN EN 61131-2)
- Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Degree of protection: IP20
- Mounting type: DIN rail
- Net weight: 192.41 g
- Diagnostics messages: No None
- Fieldbus system: Lokalbus
- Designation: Inline local bus
- Connection method: Inline data jumper
- Transmission speed: 500 kBit/s
- Supply voltage: 24 V DC (via voltage jumper)
- Supply voltage range: 19.2 V DC ... 30 V DC (including all tolerances, including ripple)
- Ripple: 5%
- Supply current: max. 90 mA
- Power dissipation: max. 2.16 W (Within the permissible operating temperature)
- Communications power UL: 7.5 V (via voltage jumper)
- Current consumption: max. 90 mA (from the local bus)
- Power consumption: max. 0.675 W (at UL)
- Input name: Digital inputs
- Description of the input: EN 61131-2 type 1
- Number of inputs: 32
- Typical response time: 2 ms
- Protective circuit: Short-circuit and overload protection
- Input voltage: 24 V DC (via voltage jumper)
- Input voltage range "0" signal: -3 V DC ... 5 V DC
- Input voltage range "1" signal: 15 V DC ... 30 V DC
- Nominal input current at UIN: typ. 2.8 mA
- Typical input current per channel: 2.8 mA
- Delay at signal change from 0 to 1: 2 ms
- Delay at signal change from 1 to 0: 4 ms
