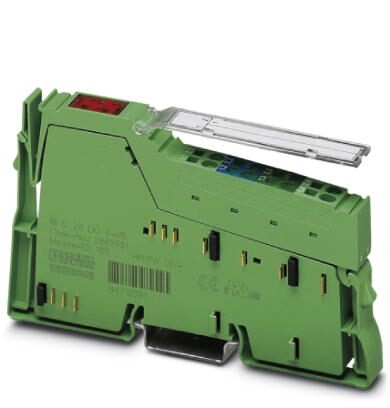

Phoenix Contact 2863931 Inline Digital Output Terminal
The PHOENIX CONTACT IB IL 24 DO 4-ME Inline ME terminal is a robust digital output module designed for use within Inline stations. It provides four digital outputs, each capable of delivering a nominal current of 500 mA. The terminal is equipped with overload and short-circuit protection, ensuring reliable operation and safeguarding connected devices. It operates on a 24 V DC supply and utilizes an inline data jumper for connection. This terminal is ideal for industrial automation applications requiring secure and reliable digital output signaling, such as controlling actuators and monitoring system status. Its compact design allows for efficient space utilization within control cabinets.
Phoenix Contact 2863931 Inline Digital Output Terminal Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 4 pc
- Weight per Piece (excluding packing): 69.2 g
- Custom tariff number: 85389091
- Country of origin: Germany
- Width: 12.2 mm
- Height: 119.8 mm
- Depth: 71.5 mm
- Ambient temperature (operation): -25 °C ... 55 °C
- Ambient temperature (storage/transport): -25 °C ... 85 °C
- Permissible humidity (operation): 10 % ... 95 % (according to DIN EN 61131-2)
- Permissible humidity (storage/transport): 10 % ... 95 % (according to DIN EN 61131-2)
- Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Degree of protection: IP20
- Mounting type: DIN rail
- Net weight: 59 g
- Note on weight specifications: with connector
- Operating mode: Process data operation with 4 bits
- Diagnostics messages: Short-circuit / overload of the digital outputs Error message in the diagnostic code (bus) and display (2 Hz) via the LED (D) on the module
- Fieldbus system: Lokalbus
- Designation: Inline local bus
- Connection method: Inline data jumper
- Transmission speed: 500 kBit/s
- Transmission physics: Copper
- Supply voltage: 24 V DC (via voltage jumper)
- Supply voltage range: 19.2 V DC ... 30 V DC (including all tolerances, including ripple)
- Supply current: 44 mA
- Communications power UL: 7.5 V (via voltage jumper)
- Current consumption: max. 44 mA (from the local bus)
- Power consumption: max. 0.33 W (at UL)
- Communications power UL (Inline potentials): 7.5 V DC
- Current consumption from UL (Inline potentials): max. 44 mA
- Segment circuit supply US: 24 V DC (nominal value)
- Current consumption from US: max. 2 A
- Output voltage: 24 V DC (US- 1 V)
- Nominal output voltage: 24 V DC (voltage difference at Inom≤ 1 V)
- Maximum output current per channel: 500 mA
- Maximum output current per module: 2 A
- Nominal load, inductive: 12 VA (1.2 H, 50 Ω)
- Nominal load, lamp: 12 W
- Nominal load, ohmic: 12 W (48 Ω)
- Utilization restriction: EMC: class A product, see manufacturer's declaration in the download area
- eCl@ss 4.0: 27250302
- eCl@ss 4.1: 27250302
- eCl@ss 5.0: 27250302
- eCl@ss 5.1: 27242604
- eCl@ss 6.0: 27242604
- eCl@ss 7.0: 27242604
- eCl@ss 8.0: 27242604
- eCl@ss 9.0: 27242604
- ETIM 2.0: EC001430
- ETIM 3.0: EC001599
- ETIM 4.0: EC001599
- ETIM 5.0: EC001599
- UNSPSC 6.01: 43172015
- UNSPSC 7.0901: 43201404
- UNSPSC 11: 43172015
- UNSPSC 12.01: 43201404
- UNSPSC 13.2: 43201404
