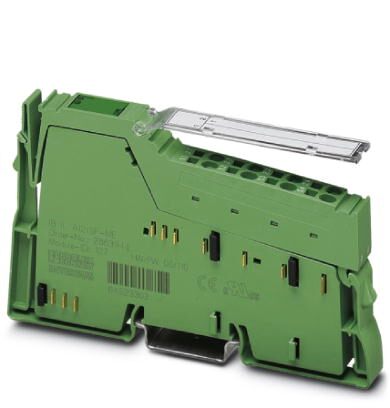

Phoenix Contact 2863944 Inline Analog Input Terminal
The PHOENIX CONTACT Inline ME terminal - IB IL AI 2/SF-ME is a versatile analog input terminal designed for use within an Inline station. It facilitates the acquisition of analog voltage and current signals, offering two single-ended inputs capable of handling various signal ranges including 0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, and -20 mA ... 20 mA. The terminal features a 12-bit resolution and supports multiple data formats, allowing for flexible representation of measured values. It is designed for connection in 2-wire technology and operates with a transmission speed of 500 kbps within the local bus. The terminal is parameterized independently via the bus system, enabling customized configurations for diverse industrial applications. Its robust design includes a degree of protection IP20 and incorporates features like surge protection and diagnostics messages for failure and user errors.
Phoenix Contact 2863944 Inline Analog Input Terminal Specifications:
- Packing unit: 1 pc
- GTIN: 4017918962654
- Weight per Piece (excluding packing): 83.200 g
- Custom tariff number: 85389091
- Country of origin: Germany
- Width: 12.2 mm
- Height: 119.8 mm
- Depth: 71.5 mm
- Ambient temperature (operation): -25 °C ... 55 °C
- Ambient temperature (storage/transport): -25 °C ... 85 °C
- Permissible humidity (operation): 10 % ... 95 % (non-condensing)
- Permissible humidity (storage/transport): 10 % ... 95 % (non-condensing)
- Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Degree of protection: IP20
- Mounting type: DIN rail
- Net weight: 86.2 g
- Operating mode: Process data operation with 2 words
- Diagnostics messages: Failure of the internal I/O supply Yes, Peripheral fault Error message in the process data, User error Error message in the process data
- Transmission speed: 500 kbps
- Supply voltage (Communications power UL): 7.5 V DC (via voltage jumper)
- Current consumption (Communications power UL): typ. 45 mA
- Max Current consumption (Communications power UL): max. 60 mA
- Supply voltage (Supply of analog modules UANA): 24 V DC (via voltage jumper)
- Supply voltage range: 19.2 V DC ... 30 V DC
- Current consumption (typical): typ. 13 mA
- Current consumption (maximum): max. 18 mA
- Power consumption (typical): typ. 662 mW
- Input type: Single-ended inputs, voltage or current
- Number of inputs: 2
- Connection method (inputs): Inline connector
- Connection technology (inputs): 2-wire
- A/D conversion time: typ. 120 µs (per channel)
- Limit frequency (3 dB): 40 Hz
- Type of protection: Surge protection
- Data formats: IB IL, IB ST, IB RT, standardized representation
- Measuring principle: Successive approximation
- Measured value resolution: 13 bits (12 bits + sign bit)
- Measured value representation: 13 bits (12 bits + sign bit)
- Current input signal ranges: 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA
- Input resistance (current input): 50 Ω (Shunt)
- Voltage input signal ranges: 0 V ... 10 V, -10 V ... 10 V
- Input resistance (voltage input): > 220 kΩ
- Common mode voltage range signal - ground: 40 V
- Electrical isolation: 7.5 V supply (bus logic), 24 V supply UANA/ I/O 500 V AC 50 Hz 1 min.
- UL Recognized: FILE E 140324
- cUL Recognized: FILE E 140324
- EAC: EAC-Zulassung
