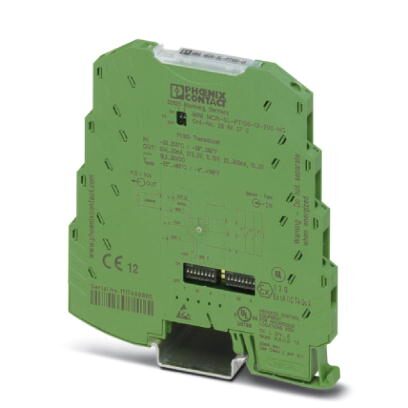

Phoenix Contact 2864370 Temperature Transducer PT100
The PHOENIX CONTACT MINI MCR-SL-PT100-UI-200NC temperature transducer is a compact and versatile device designed for accurate measurement and conversion of Pt 100 temperature sensor signals. It features configurable settings via DIP switches, allowing for flexibility in adapting to different application requirements. The transducer provides electrical isolation, ensuring signal integrity and protecting connected equipment. Its robust design and wide operating temperature range make it suitable for demanding industrial environments, including process automation, HVAC systems, and temperature monitoring applications. The device supports various output signal types and offers error indication via a diagnostic LED and analog signal, enhancing reliability and ease of troubleshooting.
Phoenix Contact 2864370 Temperature Transducer PT100 Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 90.0 g
- Custom tariff number: 85437090
- Country of origin: Germany
- Width: 6.2 mm
- Height: 93.1 mm
- Depth: 102.5 mm
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Degree of protection: IP20
- Sensor types (RTD) that can be used: Pt 100 (IEC 60751/EN 60751)
- Sensor input current: 1 mA (constant)
- Temperature measuring range: -50 °C ... 200 °C
- Connection method: 2, 3, 4-wire
- Number of outputs: 1
- Voltage output signal: 0 V ... 10 V, 10 V ... 0 V, 0 V ... 5 V, 1 V ... 5 V
- Current output signal: 0 mA ... 20 mA, 4 mA ... 20 mA, 20 mA ... 0 mA, 20 mA ... 4 mA
- Max. output voltage: approx. 12.5 V
- Max. output current: 23 mA
- Short-circuit current: approx. 10 mA
- Load/output load voltage output: > 10 kΩ
- Load/output load current output: < 500 Ω (at 20 mA)
- Nominal supply voltage: 24 V DC
- Supply voltage range: 19.2 V DC ... 30 V DC
- Max. current consumption: < 21 mA (at 24 V DC)
- Power consumption: < 500 mW
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Stripping length: 12 mm
- Screw thread: M3
- Transmission error in the set measuring range: ((50 K / Δ Temp)+ 0.05)%
- Transmission error in the full measuring range: ≤ 0,25 %
- Maximum temperature coefficient: < 0.02 %/K
- Protective circuit: Transient protection
- Electrical isolation: Basic insulation according to EN 61010
- Overvoltage category: II
- Degree of pollution: 2
- Rated insulation voltage: 50 V AC/DC
- Test voltage, input/output/supply: 1.5 kV (50 Hz, 1 min.)
- Noise emission: EN 61000-6-4
- Noise immunity: EN 61000-6-2
- Color: green
- Housing material: PBT
- Mounting position: any
- Conformance: CE-compliant
- ATEX: II 3 G Ex nA IIC T4 Gc X
- UL, USA / Canada: UL 508 Recognized, Class I, Div. 2, Groups A, B, C, D T5
- GL: GL EMC 2 D
- Electromagnetic RF field: EN 61000-4-3
- Fast transients (burst): EN 61000-4-4
- Conducted interferences: EN 61000-4-6
