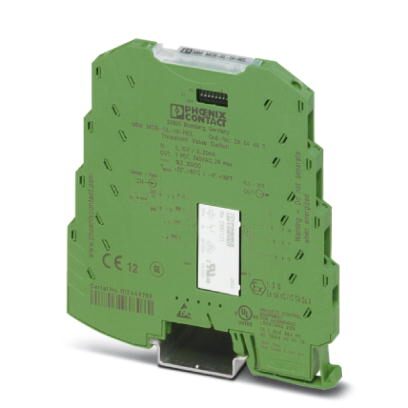

Phoenix Contact 2864480 MINI MCR-SL-UI-REL Level Switch
The PHOENIX CONTACT MINI MCR-SL-UI-REL is a compact threshold value switch designed for controlling and monitoring analog standard signals. It allows for flexible configuration of switching hysteresis, operating and closed circuit current behavior, and relay pickup/dropout times. With a relay output and adjustable potentiometer, this switch is suitable for various industrial automation and process control applications. It offers 3-way isolation and supports power supply via foot element or DIN rail connector, ensuring versatile integration into existing systems.
Phoenix Contact 2864480 MINI MCR-SL-UI-REL Level Switch Specifications:
- Weight per Piece: 85.000 g
- Custom tariff number: 85437090
- Country of origin: Germany
- Utilization restriction: EMC: class A product
- Width: 6.2 mm
- Height: 93.1 mm
- Depth: 101.2 mm
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Degree of protection: IP20
- Noise immunity: EN 61000-6-2
- Number of inputs: 1
- Voltage input signal: 0 V ... 10 V
- Current input signal: 0 mA ... 20 mA
- max. input voltage: 30 V
- Max. input current: 100 mA
- Input resistance of voltage input: > 100 kΩ
- Input resistance current input: 50 Ω
- Number of outputs: 1
- Output name: Relay output
- Contact type: 1 PDT
- Contact material: AgSnO2, hard gold-plated
- Maximum switching voltage: 250 V AC (UL: 240 V AC)
- Limiting continuous current: 2 A
- Setting range of the response delay: 0 s ... 10 s
- Internal hysteresis: 0.1 %; 1 %; 2.5 %; 5 %
- Nominal supply voltage: 24 V DC ±15 %
- Supply voltage range: 19.2 V DC ... 30 V DC
- Max. current consumption: < 14 mA (at 24 V DC)
- Power consumption: < 330 mW (at 24 V DC)
- Connection method: Screw connection
- Stripping length: 12 mm
- Screw thread: M3
- Conductor cross section solid: 0.2 mm² ... 2.5 mm²
- Conductor cross section flexible: 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG: 26 ... 12
- No. of channels: 1
- Maximum temperature coefficient: < 0.02 %/K
- Switching point accuracy: < 0.05 %
- Rated insulation voltage: 50 V AC/DC
- Test voltage input/power supply: 1.5 kV AC (50 Hz, 1 min.)
- Electromagnetic compatibility: Conformance with EMC directive
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 2
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 2
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 2
