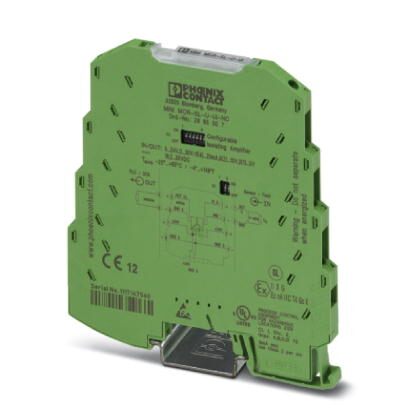

Phoenix Contact 2865007 3-way isolating amplifier
The PHOENIX CONTACT MINI MCR-SL-U-UI-NC is a compact and versatile isolating amplifier designed for electrical isolation, conversion, amplification, and filtering of standard signals. It processes input signals ranging from 0 to 24 V or 0 to 30 V and provides electrically isolated output signals such as 0 to 20 mA, 4 to 20 mA, 0 to 10 V, or 1 to 5 V. The configurable nature of the amplifier, achieved through DIP switches, allows for flexible adaptation to various industrial applications. It is suitable for applications requiring signal isolation and conversion in industrial automation, process control, and data acquisition systems.
Phoenix Contact 2865007 3-way isolating amplifier Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 72.4 g
- Custom tariff number: 85437090
- Country of origin: Germany
- Utilization restriction: EMC: class A product, see manufacturer's declaration
- Width: 6.2 mm
- Height: 93.1 mm
- Depth: 102.5 mm
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Degree of protection: IP20
- Number of inputs: 1
- Voltage input signal: 0 V ... 24 V, 0 V ... 30 V
- Max. input voltage: 50 V DC
- Input resistance of voltage input: approx. 125 kΩ (0 ... 24 V), approx. 155 kΩ (0 ... 30 V)
- Number of outputs: 1
- Voltage output signal: 0 V ... 10 V, 0 V ... 5 V, 1 V ... 5 V, 2 V ... 10 V
- Current output signal: 0 mA ... 20 mA, 4 mA ... 20 mA
- Max. output voltage: ≤ 12.5 V
- Max. output current: 28 mA
- Short-circuit current: ≤ 22 mA
- Load/output load voltage output: > 10 kΩ
- Load/output load current output: < 500 Ω (at 20 mA)
- Nominal supply voltage: 24 V DC
- Supply voltage range: 19.2 V DC ... 30 V DC
- Max. current consumption: < 19 mA (at 24 V DC incl. load)
- Power consumption: < 450 mW
- Connection method: Screw connection
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Stripping length: 12 mm
- Screw thread: M3
- No. of channels: 1
- Maximum transmission error: < 0.1 % (of final value), < 0.4 % (Without adjustment)
- Maximum temperature coefficient: < 0.01 %/K
- Temperature coefficient, typical: < 0.002 %/K
- Limit frequency (3 dB): approx. 100 Hz
- Step response (10-90%): approx. 3.5 ms
- Protective circuit: Transient protection
- Electrical isolation: Basic insulation according to EN 61010
- Overvoltage category: II
- Degree of pollution: 2
- Rated insulation voltage: 50 V AC/DC
- Test voltage, input/output/supply: 1.5 kV (50 Hz, 1 min.)
- Noise emission: EN 61000-6-4
- Noise immunity: EN 61000-6-2
- Color: green
- Housing material: PBT
