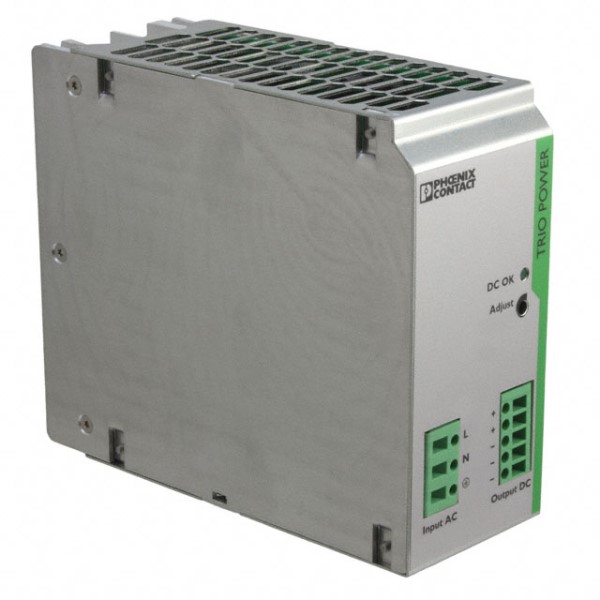

Phoenix Contact 2866459 Industrial Power Supply
The 2866459 is a 24V/240W single-output primary switched power supply designed for DIN-rail mounting, suitable for 1-phase input with standard functionality. It features a robust metal housing, high electric strength, and a wide operating temperature range to ensure reliable power delivery. The power supply includes a grounding terminal block, and its output voltage can be adjusted via a front-mounted potentiometer to compensate for voltage drops. With a high MTBF of over 500,000 hours, it offers dependable and rugged performance, making it ideal for standard industrial machine applications.
Phoenix Contact 2866459 Industrial Power Supply Specifications:
- Dimensions: 152.5 mm (L) x 130 mm (W)
- Input: 3-phase, wide-range, suitable for 1-phase operation
- Output: 24 V DC, 10 A, 240 W
- Efficiency: 88.5% at 400 V AC and nominal values
- Electrical Strength: High dielectric strength up to 300 V AC
- Operating Temperature: -25 °C to +70 °C (derating > 55°C: 2.5%/K)
- Storage/Transport Temperature: -40 °C to 85 °C
- Protection: IP20, suitable for industrial environments
- Material: Metal housing for durability
- MTBF: Over 500,000 hours for high operational reliability
- Status Indicator: Green LED for 'DC OK'
- Standards: Compliance with EMC Directive 2004/108/EC, UL Recognized, cUL Listed
- Additional: Grounding terminal block, output voltage adjustable via front potentiometer
Buy the Phoenix Contact 2866459 – Reliable Power Supply for Industrial Applications
Purchase the Phoenix Contact 2866459 power supply online today and ensure stable, dependable power for your industrial machinery. Designed for DIN-rail mounting with a compact metal housing, it provides 24V DC at 10A, suitable for various automation tasks. Its wide operating temperature, high efficiency, and high MTBF of over 500,000 hours make it ideal for demanding industrial environments. Easy to install with adjustable output voltage, this power supply guarantees reliable operation, compliance with international standards, and optimal performance for your equipment needs.
Buy Phoenix Contact 2866459 now and experience unmatched reliability and performance in industrial power systems.
Frequently Asked Questions
Where can I buy Phoenix Contact 2866459?
You can click on the BUY or RFQ button to purchase 2866459 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2866459?
You can download the 2866459 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2866459?
Phoenix Contact
