Phoenix Contact 2866491 Industrial Power Supply
The 2866491 is a 1-phase DIN-rail mounted power supply with basic switching functions, designed for reliable use in industrial applications. It features a high mean time between failures (MTBF) of 500,000 hours, ensuring long-lasting performance. The power supply can be connected in parallel to increase capacity and provide redundancy. It includes an LED indicator for status signaling and utilizes a double terminal block for positive and negative connections, facilitating quick potential distribution. An additional terminal block for the negative terminal simplifies grounding on the secondary side. The unit is overload, short-circuit, and idle-proof, and provides a regulated and adjustable output voltage suitable for various electrical needs.
Phoenix Contact 2866491 Industrial Power Supply Specifications:
- Input Voltage: 85 V AC to 264 V AC
- Output Voltage: 48 V DC
- Output Current: 5 A
- Power Rating: 240 W
- Dimensions: Width 70.4 mm, Height 124 mm, Depth 115 mm
- Temperature Range (Operation): -25°C to +70°C
- Humidity: Max. 95% at 25°C (non-condensing)
- Protection Degree: IP20
- Dielectric Strength: Up to 300 V AC
- MTBF: over 500,000 hours
- Standards: UL listed, cUL recognized, EAC
- Connections: Screw connection terminals
- Vibration (Operation): <15 Hz, 2.5 mm amplitude; 15-150 Hz, 2.3 g

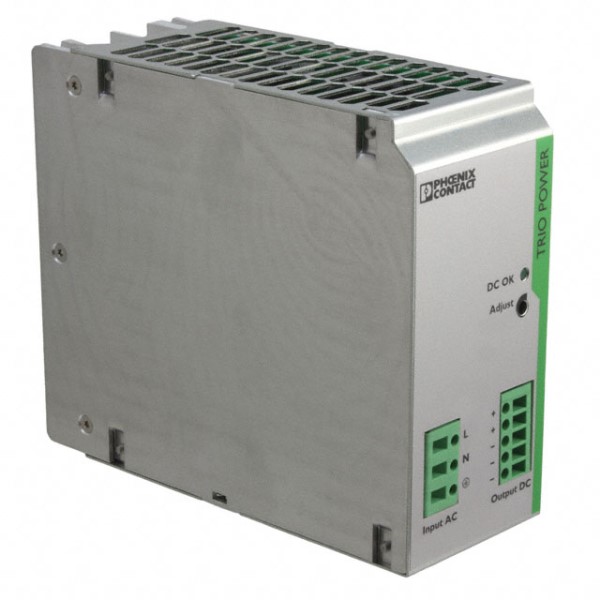

Buy the Buy Phoenix Contact Power Supply Unit TRIO-PS/1AC/48DC/5 Part Number 2866491 Online
Secure your industrial automation setup with the Phoenix Contact Series2866491 power supply. Featuring a robust metal housing, adjustable output, and high MTBF, it guarantees dependable performance in harsh environments. With a compact design and screw terminal connections, installation is quick and straightforward. Suitable for DIN rail mounting, it covers a wide temperature range from -25°C to 70°C and complies with key standards including UL, cUL, and EAC. Elevate your power management with this reliable, high-efficiency unit.
Order your Phoenix Contact Series2866491 power supply today and ensure your industrial projects have reliable, high-quality power at all times.
Frequently Asked Questions
Where can I buy Phoenix Contact 2866491?
You can click on the BUY or RFQ button to purchase 2866491 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2866491?
You can download the 2866491 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2866491?
Phoenix Contact
