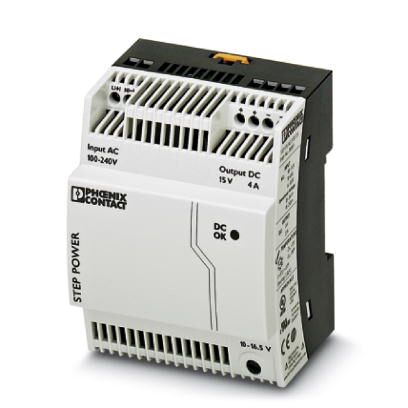

Phoenix Contact 2868619 15VDC 4A Power Supply
The PHOENIX CONTACT STEP POWER power supply is designed for building automation applications, offering a combination of efficiency, reliability, and flexibility. Its low idling losses and high degree of efficiency maximize energy savings. The power supply can be easily mounted onto a DIN rail or screwed onto a level surface, providing versatility in installation. Key features include transient surge protection, a wide input voltage range, and a robust design for demanding industrial environments. It is suitable for applications requiring a stable 15VDC power supply with a current capacity of 4A.
Phoenix Contact 2868619 15VDC 4A Power Supply Specifications:
- Packing unit: 1 STK
- GTIN: 4046356308540
- Weight per Piece: 300.000 g
- Custom tariff number: 85044030
- Country of origin: Poland
- Width: 72 mm
- Height: 90 mm
- Depth: 61 mm
- Degree of protection: IP20
- Ambient temperature (operation): -25 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Max. permissible relative humidity (operation): ≤ 95 %
- Nominal input voltage range: 100 V AC ... 240 V AC
- Input voltage range: 85 V AC ... 264 V AC
- AC frequency range: 45 Hz ... 65 Hz
- Nominal power consumption: 68.5 W
- Inrush surge current: < 15 A
- Mains buffering: > 27 ms
- Input fuse: 3.15 A
- Nominal output voltage: 15 V DC ±1 %
- Setting range of the output voltage: 10 V DC ... 16.5 V DC
- Nominal output current: 4 A
- Output current Imax: 9 A
- Connection in parallel: Yes
- Connection in series: Yes
- Residual ripple: < 55 mVPP
- Output power: 60 W
- Net weight: 0.27 kg
- Efficiency: > 87 %
- Insulation voltage input/output: 4 kV AC
- Insulation voltage input / PE: 3.5 kV AC
- Insulation voltage output / PE: 500 V DC
