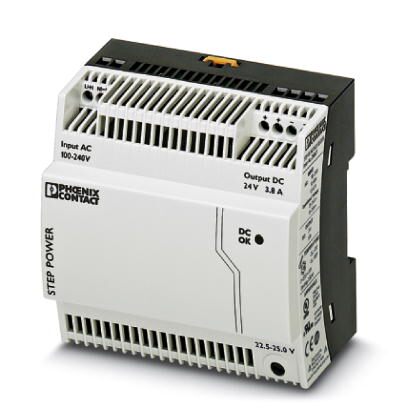

Phoenix Contact 2868677 24VDC 3.8A Power Supply
The PHOENIX CONTACT STEP POWER is a primary-switched power supply specifically engineered for building automation systems. It delivers a stable 24VDC output at 3.8A and boasts exceptional energy efficiency thanks to its low idling losses. The unit is designed for DIN rail mounting, offering flexible installation options. Key features include a high MTBF (mean time between failures) exceeding 500,000 hours, transient surge protection, and compliance with various international standards. This power supply is ideal for applications requiring a reliable and efficient power source in industrial environments.
Phoenix Contact 2868677 24VDC 3.8A Power Supply Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 380.0 g
- Custom tariff number: 85044030
- Country of origin: Germany
- Width: 90 mm
- Height: 90 mm
- Depth: 61 mm
- Degree of protection: IP20
- Ambient temperature (operation): -25 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Nominal input voltage range: 100 V AC ... 240 V AC
- Input voltage range: 85 V AC ... 264 V AC
- AC frequency range: 45 Hz ... 65 Hz
- Inrush surge current: < 15 A
- Power failure bypass: > 25 ms
- Input fuse: 4 A
- Output voltage: 24 V DC ±1 %
- Setting range of the output voltage: 22.5 V DC ... 25 V DC
- Nominal output current: 3.8 A
- Output current max: 6.5 A
- Efficiency: > 88 %
- Insulation voltage input/output: 4 kV AC
- Mounting position: horizontal DIN rail NS 35
- Connection method (input): Screw connection
- Conductor cross section solid (input): 0.2 mm² ... 2.5 mm²
- Conductor cross section flexible (input): 0.2 mm² ... 2.5 mm²
- Connection method (output): Screw connection
- Conductor cross section solid (output): 0.2 mm² ... 2.5 mm²
- Conductor cross section flexible (output): 0.2 mm² ... 2.5 mm²
