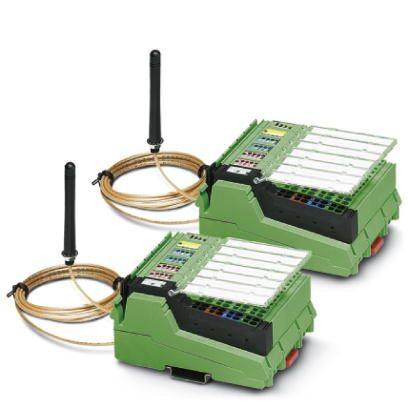

Phoenix Contact 2884208 Wireless MUX Set
The Phoenix Contact ILB BT ADIO MUX-OMNI is an industrial wireless diagnostics module designed for simplified and reliable data transmission in challenging environments. This wireless set includes two modules, each equipped with 16 digital inputs and outputs, and 2 analog inputs and outputs (0 ... 20 mA, 0 ... 10 V). It leverages Bluetooth 4.0 technology for seamless connectivity and plug-and-play setup, eliminating complex configurations. The module's extended range (up to 400m outdoors with directional antennas) makes it suitable for large industrial facilities. Features include a bar graph display for intuitive diagnostics, polarity and surge protection, and robust housing for reliable operation in harsh conditions. It is ideal for applications requiring remote monitoring and control of industrial processes, such as predictive maintenance, process optimization, and data logging.
Phoenix Contact 2884208 Wireless MUX Set Specifications:
- Packing unit: 1 STK
- GTIN: 4046356049597
- Weight per Piece: 900.000 g
- Custom tariff number: 85176200
- Country of origin: Germany
- Wireless standard: Based on Bluetooth 4.0
- Modulation type: GFSK (Gaussian Frequency Shift Keying)
- Antenna connection method: RSMA (female)
- Frequency range: 2.402 GHz ... 2.48 GHz (ISM bandwidth)
- Transmission power: 5 dBm
- Receiver sensitivity: -95 dBm
- Connection method (power): Inline connector
- Supply voltage: 24 V DC
- Supply voltage range: 19.2 V DC ... 30.5 V DC
- Current consumption: 60 mA
- Type of protection (power): Polarity protection, surge protection
- Input voltage range "0" signal: < 5 V
- Input voltage range "1" signal: > 15 V
- Input frequency: ≤ 10 Hz
- Typical input current per channel: 2.3 mA
- Number of digital inputs: 16
- Number of digital outputs: 16
- Nominal output voltage: 24 V DC
- Output current (total): 8 A
- Maximum output current per channel: 500 mA
- Nominal load, inductive: 12 VA (1.2 H, 50 Ω)
- Nominal load, lamp: 12 W
- Nominal load, ohmic: 12 W (48 Ω)
- Housing material: PA 6.6-FR
- Mounting type: DIN rail
- Net weight: 885 g
- Degree of pollution: 2
- MTBF: 465 Years
- MTTF: 1458 Years
- Diagnostics messages: Short-circuit / overload of the digital outputs LED, Wireless connection FS LED, Logic and actuator voltage LED, Link quality of the wireless connection 4 LEDs
- Switch-on time: ≤ 3 s
- Delay time: ≤ 10 ms
- Wireless licences: Various countries including USA, Germany, Canada
- Electromagnetic compatibility: Conformance with EMC Directive 2014/30/EU
- Standard designation: RED directive 2014/53/EU
- Standards/regulations: EN 300328, EN 61000-6-4, EN 61000-6-2, EN 62311, EN 60950
- Mechanical tests: Vibration resistance in acc. with EN 60068-2-6
