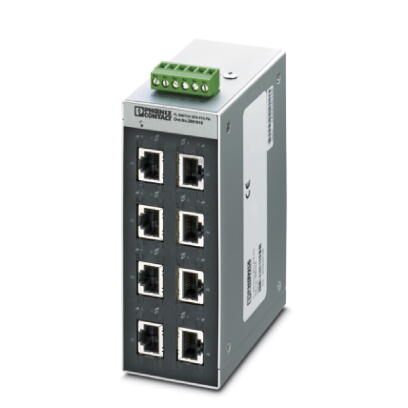

Phoenix Contact 2891018 Industrial Ethernet Switch
The PHOENIX CONTACT FL SWITCH SFN 8TX-PN is a factoryline switch ideal for expanding Ethernet networks in industrial environments. Its compact design allows for versatile remote use in control cabinets and junction boxes. The switch incorporates features like automatic negotiation, multicast filtering to block PROFINET PTCP-Delay traffic, and quality of service prioritization. It supports a wide range of network expansion parameters and offers local diagnostic indicators for easy monitoring. This switch is suitable for applications requiring reliable and secure industrial network connectivity.
Phoenix Contact 2891018 Industrial Ethernet Switch Specifications:
- GTIN: 4046356997300
- Weight per Piece (excluding packing): 650.000 g
- Custom tariff number: 85176200
- Country of origin: Taiwan
- Utilization restriction: EMC: class A product, see manufacturer's declaration
- Width: 50 mm
- Height: 130 mm
- Depth: 100 mm
- Degree of protection: IP20
- Ambient temperature (operation): 0 °C ... 60 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Permissible humidity (operation): 5 % ... 95 % (non-condensing)
- Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
- Air pressure (operation): 86 kPa ... 108 kPa
- Air pressure (storage/transport): 66 kPa ... 108 kPa
- Interface: Ethernet (RJ45)
- No. of ports: 8 (RJ45 ports)
- Transmission physics: Ethernet in RJ45 twisted pair
- Transmission speed: 10/100 Mbps
- Basic functions: Unmanaged switch / auto negotiation, complies with IEEE 802.3
- Additional functions: Autonegotiation
- PROFINET conformance class: Conformance-Class A
- Status and diagnostic indicators: LEDs: US, link and activity per port
- Cascading depth: Network, linear, and star structure: any
- Supply voltage: 24 V DC
- Residual ripple: 3.6 VPP
- Supply voltage range: 9 V DC ... 32 V DC
- Typical current consumption: 140 mA
- Mounting type: DIN rail
- Housing material: Aluminum
- MTTF: 128 Years
- Noise emission: EN 61000-6-4
- Noise immunity: EN 61000-6-2:2005
- REACh SVHC: Lead 7439-92-1
- China RoHS: Environmentally Friendly Use Period = 10
