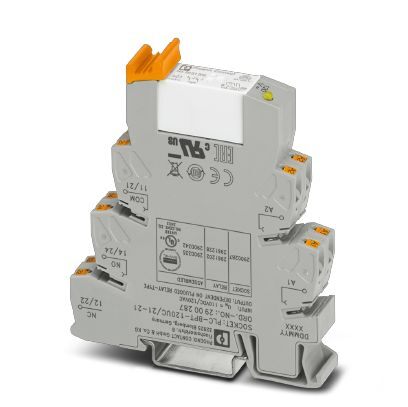

Phoenix Contact 2900335 PLC Relay Module
The PHOENIX CONTACT PLC-RPT-120UC/21-21 (2900335) is a relay module specifically designed for integration into Programmable Logic Controller (PLC) systems. This module combines a PLC-BPT basic terminal block with a plug-in miniature relay, offering a compact and efficient solution for relay-based control and automation. Its slim design allows for space-saving installation on NS 35/7.5 DIN rails, while the V8 adapter ensures efficient connection to system cabling. The module's safe isolation, according to DIN EN 50178, enhances system reliability and safety. It is ideal for applications requiring reliable switching and control in industrial environments, such as automated machinery, process control systems, and building automation.
Phoenix Contact 2900335 PLC Relay Module Specifications:
- Packing unit: 1 pc
- GTIN: 4046356507288
- Weight per Piece (excluding packing): 64.000 g
- Custom tariff number: 85364900
- Country of origin: Germany
- Nominal input voltage UN: 120 V AC/DC
- Typical input current at UN: 4.2 mA (at 110 V DC) / 4.5 mA (at 120 V AC)
- Typical response time: 7 ms
- Typical release time: 10 ms
- Contact type: 2 PDT
- Type of switch contact: Single contact
- Contact material: AgNi
- Maximum switching voltage: 250 V AC/DC
- Minimum switching voltage: 5 V AC/DC (at 10 mA)
- Min. switching current: 10 mA (At 5 V)
- Maximum inrush current: 15 A (300 ms)
- Limiting continuous current: 6 A
- Interrupting rating (ohmic load) max.: 140 W (at 24 V DC) / 85 W (at 48 V DC) / 60 W (at 60 V DC) / 44 W (at 110 V DC) / 60 W (at 220 V DC) / 1500 VA (for 250 V AC)
- Switching capacity: 2 A (at 24 V, DC13) / 3 A (at 24 V, AC15) / 3 A (at 120 V, AC15) / 0.2 A (at 250 V, DC13) / 3 A (at 250 V, AC15)
- Operating mode: 100% operating factor
- Mechanical service life: 3x 10^7 cycles
- Mounting position: any
- Connection method (Coil side): Push-in connection
- Stripping length (Coil side): 8 mm
- Conductor cross section solid (Coil side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (Coil side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (Coil side): 26 ... 14
- Connection method (Contact side): Push-in connection
- Stripping length (Contact side): 8 mm
- Conductor cross section solid (Contact side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (Contact side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (Contact side): 26 ... 14
- Rated surge voltage: 6 kV
- Pollution degree: 2
- Overvoltage category: III
- Ambient temperature (operation): -40 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Degree of protection: RT III (Relay) / IP20 (Relay base)
