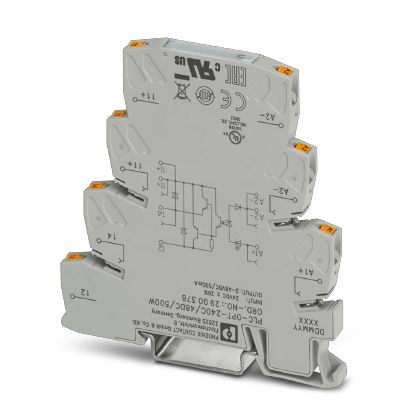

Phoenix Contact 2900378 Solid-State Relay Module
The PHOENIX CONTACT 2900378 solid-state relay module is a compact and versatile solution for controlling DC loads in industrial applications. Featuring electronic PDT contact and push-in connection, it is designed for mounting on DIN rail NS 35/7.5. The module provides wear-free switching with no contact bounce, resistance to vibrations and shocks, and protective circuits in both input and output. It is suitable for bridging adjacent modules and offers DC voltage outputs up to 300 V DC/1 A or up to 24 V DC/10 A. The module's electronic PDT output supports voltages up to 48 V DC/500 mA and includes a status indicator for easy monitoring.
Phoenix Contact 2900378 Solid-State Relay Module Specifications:
- Packing unit: 1 pc
- GTIN: 4046356506977
- Weight per Piece (excluding packing): 30.190 g
- Custom tariff number: 85364190
- Country of origin: Germany
- Utilization restriction: EMC: class A product, see manufacturer's declaration
- Width: 6.2 mm
- Height: 80 mm
- Depth: 86 mm
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Nominal input voltage UN: 24 V DC
- Input voltage range in reference to UN: 0.8 ... 1.2
- Input voltage range: 19.2 V DC ... 28.8 V DC
- Switching threshold "0" signal in reference to UN: ≤ 0.4
- Switching threshold "1" signal in reference to UN: ≥ 0.8
- Typical input current at UN: 3 mA
- Typical response time: 0.03 ms
- Typical turn-off time: 0.15 ms
- Operating voltage display: Yellow LED
- Type of protection (input): Reverse polarity protection
- Surge protection (input): N/A
- Protective circuit/component (input): Polarity protection diode
- Transmission frequency: 1000 Hz
- Power dissipation for nominal condition: 0.07 W
- Output voltage range: 3 V DC ... 48 V DC
- Limiting continuous current: 500 mA
- Min. load current: 1 mA
- Voltage drop at max. limiting continuous current: < 1.2 V
- Output circuit: 2-wire, floating
- Type of protection (output): Reverse polarity protection
- Surge protection (output): N/A
- Protective circuit/component (output): Polarity protection diode
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Connection name (input): Input side
- Connection method (input): Push-in connection
- Stripping length (input): 8 mm
- Conductor cross section solid (input): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (input): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (input): 26 ... 14
- Connection name (output): Output side
- Connection method (output): Push-in connection
- Stripping length (output): 8 mm
- Conductor cross section solid (output): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (output): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (output): 26 ... 14
- eCl@ss 4.0: 27371100
- eCl@ss 4.1: 27371100
- eCl@ss 5.0: 27371000
- eCl@ss 5.1: 27371000
- eCl@ss 6.0: 27371600
- eCl@ss 7.0: 27371604
- eCl@ss 8.0: 27371604
- eCl@ss 9.0: 27371604
- ETIM 2.0: EC001504
- ETIM 3.0: EC001504
- ETIM 4.0: EC001504
- ETIM 5.0: EC001504
- ETIM 6.0: EC001504
- ETIM 7.0: EC001504
- UNSPSC 6.01: 30211916
- UNSPSC 7.0901: 39121542
- UNSPSC 11: 39121542
- UNSPSC 12.01: 39121542
- UNSPSC 13.2: 39122326
- UL Listed: FILE E 172140
- UL Recognized: FILE E 238705
- cUL Recognized: FILE E 238705
- cUL Listed: FILE E 172140
- EAC: TR_TS_D_00573_c
- cULus Recognized: N/A
- cULus Listed: N/A
- China RoHS: Environmentally Friendly Use Period = 50
