Phoenix Contact 2900392 Solid-State Relay Module

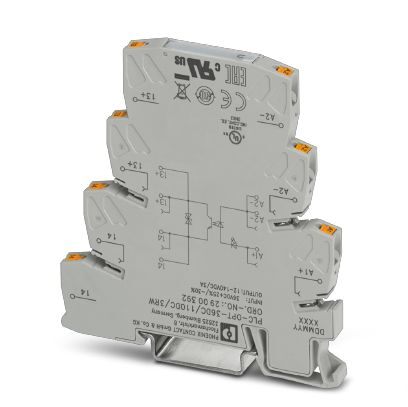

The PHOENIX CONTACT 2900392 is a solid-state relay module specifically engineered for railway applications. It combines a basic terminal block with an integrated miniature solid-state relay, providing a compact and efficient solution for switching circuits. The module operates within a voltage range of 0.7 to 1.25 times the nominal input voltage (UN), and features a wide operating temperature range, shock resistance, and various protective measures like reverse polarity and surge protection. Its robust design and reliable performance make it suitable for demanding industrial environments.
Phoenix Contact 2900392 Solid-State Relay Module Specifications:
- Packing unit: 1 pc
- GTIN: 4046356508971
- Weight per Piece (excluding packing): 31.190 g
- Custom tariff number: 85364190
- Country of origin: Germany
- Nominal input voltage UN: 36 V DC
- Input voltage range in reference to UN: 0.7 ... 1.25 (t < 1 s = 0.6 ... 1.4 x UN)
- Input voltage range: 25.2 V DC ... 45 V DC
- Switching threshold "0" signal in reference to UN: < 0.4
- Switching threshold "1" signal in reference to UN: > 0.6
- Typical input current at UN: 12 mA
- Typical response time: 400 µs
- Typical turn-off time: 100 µs
- Operating voltage display: Yellow LED
- Type of protection: Reverse polarity protection
- Surge protection: > 150 V
- Transmission frequency: 50 Hz
- Power dissipation for nominal condition: 0.43 W
- Output nominal voltage: 110 V DC
- Output voltage range: 12 V DC ... 140 V DC (t < 1 s = 1.40 x UN)
- Limiting continuous current: 3 A (see derating curve)
- Voltage drop at max. limiting continuous current: < 150 mV
- Output circuit: 2-wire, floating
- Connection name (Input side): Input side
- Connection method (Input side): Push-in connection
- Stripping length (Input side): 8 mm
- Conductor cross section solid (Input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (Input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (Input side): 26 ... 14
- Connection name (Output side): Output side
- Connection method (Output side): Push-in connection
- Stripping length (Output side): 8 mm
- Conductor cross section solid (Output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (Output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (Output side): 26 ... 14
- Test voltage input/output: 2.5 kVrms
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Flammability rating according to UL 94: V0
- Connection in acc. with standard: CUL
- Designation: Air clearances and creepage distances between the power circuits
- Standards/regulations: IEC 60664, EN 50178
- Rated insulation voltage: 160 V DC
- Rated surge voltage: 4 kV
- Insulation: Basic insulation
- Degree of pollution: 2
- Overvoltage category: III
- China RoHS: Environmentally Friendly Use Period = 50
