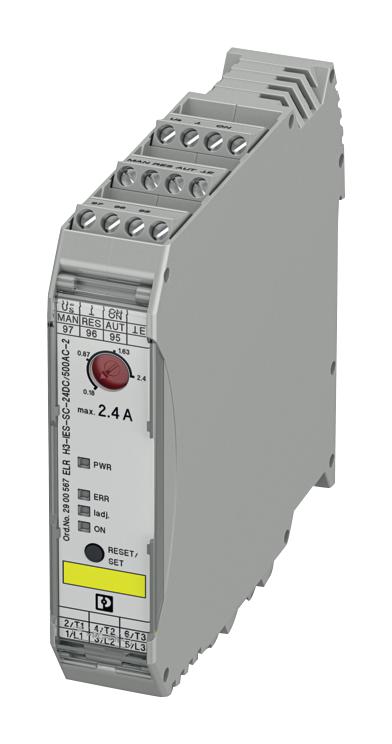

Phoenix Contact 2900567 Hybrid Motor Starter
The hybrid motor starter is designed for starting three-phase AC motors up to 500 V AC and 2.4 A output current. It features adjustable overload shutdown, emergency stop function to SIL 3/PL e, and screw connection. The device supports control voltage of 24 V DC with a range of 19.2V to 30 V DC, surge protection, and reverse polarity protection. It offers easy DIN rail mounting, with compact dimensions of 22.5 mm width, 106.6 mm height, and 113.7 mm depth, making it suitable for industrial automation and motor control applications.
Phoenix Contact 2900567 Hybrid Motor Starter Specifications:
- Rated control circuit supply voltage Us 24V DC
- Control supply voltage range 19.2V DC ... 30 V DC
- Rated control supply current Is 40 mA
- Control input trigger voltage range 19.2V DC ... 30 V DC
- Switching threshold 9.6 V (0 signal), 19.2 V (1 signal)
- AC output rated operating voltage 500 VAC, range 42 VAC ... 550 V AC
- Rated operating current 2.4 A (AC-51, AC-53a)
- Load current range 180 mA ... 2.4 A
- Input/output connection method Screw connection, 8 mm stripping length, M3 screw thread
- Conductor cross section 0.2 mm² ... 2.5 mm² (solid and flexible), AWG 24 ... 14
- Operating temperature -25°C to 70°C (derating observed)
- Storage/transport temperature -40°C to 80°C
- Degree of protection IP20
- Dimensions Width 22.5 mm, Height 106.6 mm, Depth 113.7 mm
- UL SCCR 100 kA (500 V AC), 5 kA (500 V AC with 20 A fuse)
- Environmental compliance China RoHS
- Standards IEC 60947-1, IEC 60947-4-2, IEC 61508, ISO 13849, ATEX
- Approval certifications UL Listed, cUL Listed, CE, ATEX, IECEx
Buy the Phoenix Contact Series ELR H3 Series Hybrid Motor Starter: 2900567
Purchase the Phoenix Contact Series ELR H3-IES-SC- 24DC/500AC-2 today online and experience dependable motor starting with adjustable overload protection, emergency stop safety to SIL 3/PL e, and compact DIN rail mounting. Perfect for industrial automation, this device offers high reliability, surge protection, and versatile wiring options, ensuring optimal motor control performance and safety in demanding environments. Get yours now for seamless integration into your control panels and motor protection systems.
Order your Phoenix Contact Series ELR H3-IES-SC- 24DC/500AC-2 today and give your automation system reliable motor protection and control.
