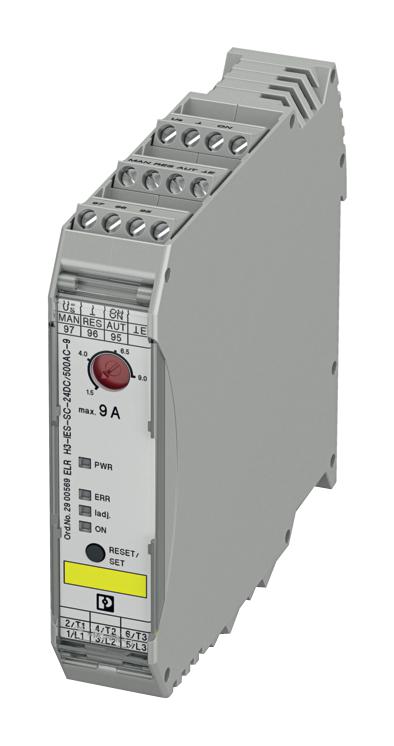

Phoenix Contact 2900569 Hybrid Motor Starter
The Hybrid motor starter optimally starts 3-phase AC motors up to 500 V AC and 9 A output current. Controlled via 24 V DC, it features adjustable overload shutdown, emergency stop, surge and reverse polarity protection, and LED indicators. Mountable on DIN rails, it complies with IEC standards and provides safe isolation. Its compact design saves space, reduces wiring, and ensures long service life, making it suitable for industrial motor control applications requiring SIL3/PL e safety levels.
Phoenix Contact 2900569 Hybrid Motor Starter Specifications:
- Rated control circuit supply voltage Us: 24 V DC
- Control supply voltage range: 19.2 V DC ... 30 V DC
- Rated control supply current Is: 40 mA
- Control input rated actuating voltage Uc: 24 V DC
- Triggering voltage range: 19.2 V DC ... 30 V DC
- Output load rated operating voltage U: 500 VAC
- Operating voltage range: 42 VAC ... 550 V AC
- Rated operating current I: 9 A (AC-51), 6.5 A (AC-53a)
- Load current range: 1.5 A... 9 A
- Cooling time: 20 min (auto reset)
- Power dissipation: Max 7 W, Min 0.88 W
- Dimensions: Width 22.5 mm, Height 106.6 mm, Depth 113.7 mm
- Protection: Surge protection, reverse polarity
- Insulation voltage: 500 V AC; overvoltage category: III
- Safety and Certification: IEC 60947-1, IEC 60947-4-2, IEC 61508, ISO 13849, UL, CUL, ATEX, EAC
- Operating temp: -25°C to 70°C, Storage -40°C to 80°C
- Degree of protection: IP20
Buy the Phoenix Contact ELR H3-IES-SC- 24DC/500AC-9 – Reliable Hybrid Motor Starter for Industrial Applications
Purchase the Phoenix Contact ELR H3-IES-SC- 24DC/500AC-9 online today to benefit from reliable motor starting with advanced safety features, adjustable overload shutdown, surge protection, and compact DIN rail design. Ideal for industrial environments, this hybrid motor starter supports up to 500 V AC and 9 A, providing long service life and space efficiency. Ensure safe, compliant operation for your machinery and optimize your control systems with this high-quality, easy-to-install device.
Order your Phoenix Contact ELR H3-IES-SC- 24DC/500AC-9 today and ensure efficient, safe, and space-saving motor control for your industrial projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 2900569?
You can click on the BUY or RFQ button to purchase 2900569 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2900569?
You can download the 2900569 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2900569?
Phoenix Contact
