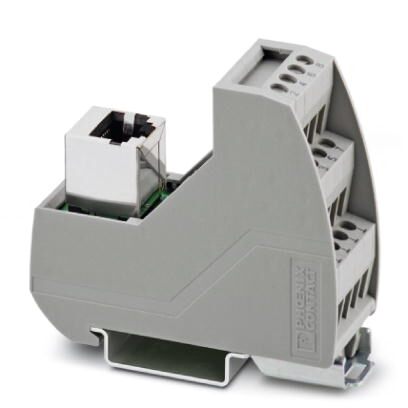

Phoenix Contact 2900701 Interface Module
The Phoenix Contact VIP-3/SC/RJ45 interface module provides a reliable connection between field devices and control systems. This VARIOFACE module combines a screw connection for field-level devices with an RJ45 connector for controller-level communication. It supports a nominal voltage of 48V AC/DC and a maximum current of 4A across all branches, making it suitable for a wide range of industrial applications. The module's compact design and robust construction ensure reliable performance in demanding environments. It is commonly used in automation systems, data acquisition, and process control applications where secure and efficient data transmission is critical.
Phoenix Contact 2900701 Interface Module Specifications:
- Packing unit: 1 pc
- GTIN: 4046356547802
- Weight per Piece (excluding packing): 80.000 g
- Custom tariff number: 85366990
- Country of origin: United States
- Width: 26.9 mm
- Height: 69 mm
- Depth: 62 mm
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Nominal voltage UN: 48 V AC/DC
- Max. perm. current (per branch): 1 A
- Max. permissible current (all branches): 4 A
- Number of positions: 8
- Status display: No
- Mounting position: any
- Connection name (Field level): Field level
- Connection in acc. with standard: IEC / EN
- Connection method (Field level): Screw connection
- Stripping length: 8 mm
- Screw thread: M 3
- Conductor cross section solid: 0.2 mm² ... 4 mm²
- Conductor cross section flexible: 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG: 24 ... 12
- Connection name (Controller level): Controller level
- Connection method (Controller level): RJ45 socket
- Number of connections (Controller level): 1
- Standards and Regulations: DIN EN 50178
- Lead: 7439-92-1
- China RoHS: Environmentally Friendly Use Period = 50
- eCl@ss 4.0: 27250300
- eCl@ss 4.1: 27250300
- eCl@ss 5.0: 27250300
- eCl@ss 5.1: 27250300
- eCl@ss 6.0: 27242600
- eCl@ss 7.0: 27141152
- eCl@ss 8.0: 27141152
- eCl@ss 9.0: 27141152
- ETIM 4.0: EC002780
- ETIM 5.0: EC002780
- ETIM 6.0: EC002780
- ETIM 7.0: EC002780
- UNSPSC 6.01: 30211824
- UNSPSC 7.0901: 39121421
- UNSPSC 11: 39121421
- UNSPSC 12.01: 39121421
- UNSPSC 13.2: 39121432
