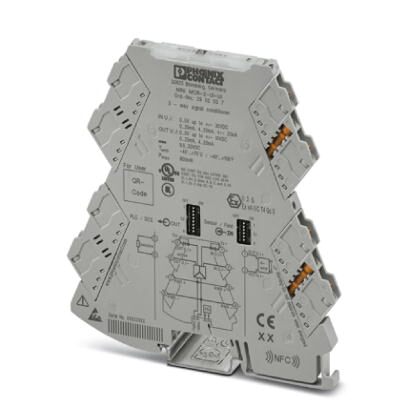

Phoenix Contact 2902037 Signal Conditioner
The 3-way signal conditioner features plug-in connection technology and allows calibrated measurement range changeover via DIP switches. It is designed for electrical isolation, conversion, amplification, and filtering of both unipolar and bipolar standard and normalized signals. The device supports input signals such as 0-20 mA, 4-20 mA, 0-10 V, 0-5 V, 1-5 V, -10 to 10 V, and various other voltage and current ranges. On the output side, it provides 0-20 mA, 4-20 mA, 0-10 V, 0-5 V, 1-5 V, -10 to 10 V, and -5 to 5 V signals. No adjustment is required after changing the measurement range. The transducer includes fault monitoring and NFC communication capabilities. The device has a gray plastic housing, measures 120.5 mm in depth, 110.5 mm in height, with screw terminals for connections. It is approved for use under ATEX, UL, cUL, GL standards, and is cULus listed.
Phoenix Contact 2902037 Signal Conditioner Specifications:
- Dimensions: Height 110.5 mm, Depth 120.5 mm, Width 6.2 mm
- Input signals: 0-20 mA, 4-20 mA, 0-10 V, 0-5 V, 1-5 V, -10 to 10 V, -20 to 20 V, -24 to 24 V, -30 to 30 V, -20 to 20 mA
- Output signals: 0-20 mA, 4-20 mA, 0-10 V, 0-5 V, 1-5 V, -10 to 10 V, -5 to 5 V
- Power supply: 9.6 V DC to 30 V DC, typical current 25 mA at 24 V DC
- Connection: Screw terminals, DIN rail mounting according to EN 60715
- Standards: ATEX, UL, cUL, GL, RoHS compliant
- Environmental: Operation -40°C to 70°C, Storage -40°C to 85°C
- Certification: UL Listed, cUL Listed, GL, ATEX
- Additional features: Fault monitoring, NFC communication, plug-in connection technology
Buy the Phoenix Contact Series Mini MCR-2-UI-UI: 2902037
Enhance your automation system with the Phoenix Contact Mini MCR-2-UI-UI signal conditioner. This device offers versatile input/output configurations, electrical isolation, and calibrated range changeover via DIP switches. Its plug-in connection simplifies installation, while fault monitoring and NFC communication provide advanced functionality. Designed for DIN rail mounting, it supports a broad temperature range and complies with ATEX, UL, cUL, and GL standards for safety and environmental standards. Maximize your process control efficiency today by ordering online with confidence.
Buy Phoenix Contact Mini MCR-2-UI-UI 2902037 now and experience unmatched reliability and performance with advanced signal conversion and fault monitoring.
