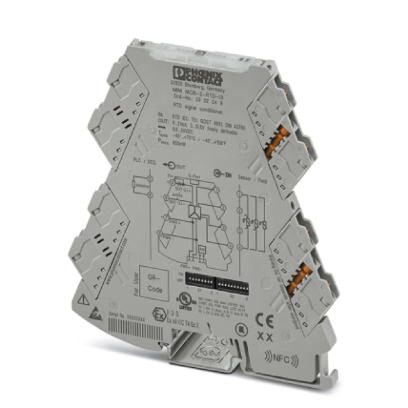

Phoenix Contact 2902049 Temperature Transducer
The configurable temperature transducer with plug-in connection technology connects resistance thermometers and sensors with 2, 3, and 4-conductor configurations. Easily configurable via DIP switches or dedicated software, this device ensures accurate temperature measurement conversion into linear current or voltage signals. Its screw connection technology offers secure wiring, and the device supports fault monitoring and NFC for enhanced diagnostics. Designed for industrial environments, it maintains reliability with IP20 protection and a temperature range from -40°C to 70°C during operation, making it suitable for process control and automation applications.
Phoenix Contact 2902049 Temperature Transducer Specifications:
- Dimensions: Height 109.81 mm, Depth 119.2 mm
- Ambient temperature (operation): -40 °C to 70 °C
- Ambient temperature (storage/transport): -40 °C to 85 °C
- Protection class: IP20
- Sensor types: Pt, Ni, Cu RTD
- Measuring range: -200 °C to 850 °C (can be set via software or DIP switches)
- Input current: approx. 200 pA
- Output voltage: 0 V to 10.5 V (adjustable via software)
- Output current: 0 mA to 21 mA (adjustable via software)
- Noise immunity: EN 61000-6-2
- Permissible humidity: 5% to 95% non-condensing
- Utilization restriction area: Not specified
- Material: Not specified, designed for industrial environments
- Weight: Not specified
Buy the Phoenix Contact 2902049 – Reliable Temperature Transducer for Industrial Applications
Enhance your industrial temperature measurement systems with this configurable resistance transducer. Support for RTD sensors, precise configuration via DIP switches or software, and secure screw connection technology make it ideal for automation and process control. Compact design with IP20 protection ensures durability in various environments. Suitable for applications requiring high accuracy, fault monitoring, and flexibility in measurement range, this device simplifies integration into existing systems and boosts operational reliability. Purchase online today to improve your plant's temperature monitoring capabilities efficiently.
Order your Phoenix Contact 2902049 temperature transducer today and ensure precise, configurable temperature measurement for your industrial projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 2902049?
You can click on the BUY or RFQ button to purchase 2902049 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2902049?
You can download the 2902049 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2902049?
Phoenix Contact
