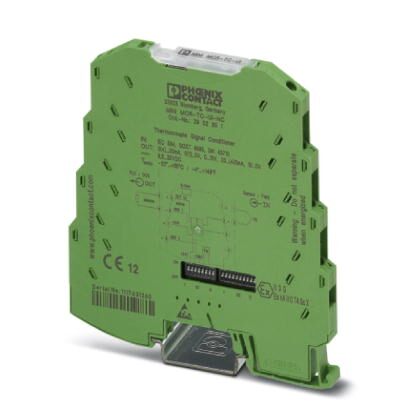

Phoenix Contact 2902851 Thermocouple Transducer
This configurable temperature transducer features three-way isolation and is designed for connecting thermocouples. It converts temperature measurements into a linear current or voltage signal. The device can be configured using free software or directly through DIP switches according to the provided configuration table. It also supports fault monitoring for reliable operation. The housing is made of PBT plastic, with dimensions of 102.5 mm in depth, 93.1 mm in height, and 6.2 mm in width. It is certified according to standards such as EN 61000-4-6 and holds approvals including UL Listed, cUL Listed, ATEX, EAC, and GL. It has one output channel and features a green indicator light.
Phoenix Contact 2902851 Thermocouple Transducer Specifications:
- Power Supply: 9.6 V DC to 30 V DC
- Ambient Temperature (Operation): -20°C to 65°C
- Ambient Temperature (Storage/Transport): -40°C to 85°C
- Degree of Protection: IP20
- Sensor Types: B, E, J, K, N, R, S, T, L, U, A-1, A-2, A-3, M, L
- Temperature Measuring Range: -250°C to 2500°C (sensor dependent)
- Output Data: Linear current or voltage signals
- Housing Material: PBT plastic
- Dimensions: Depth 102.5 mm, Height 93.1 mm, Width 6.2 mm
- Standards and Certifications: UL Listed, cUL Listed, EN 61000-4-6, ATEX, EAC, GL
- Configuration: Via DIP switches or software (FDT/DTM)
- Fault Monitoring: Supported
- Connection: Screw connection, DIN rail mounting
Buy the Buy Phoenix Contact Thermocouple Measuring Transducer Part Number 2902851 Online
Purchase the Phoenix Contact thermocouple transducer 2902851 online today. Built for accurate temperature measurement with three-way isolation, fault monitoring, and easy configuration via software or DIP switches. Its robust PBT plastic housing ensures long-lasting durability in industrial settings. Certified with UL, cUL, and EN standards, and suitable for a wide range of thermocouples, this device offers reliable data conversion from temperature sensors to linear signals. Ideal for automation and control systems requiring high precision and stability.
Get Phoenix Contact 2902851 today—designed for precise temperature measurement and reliable fault monitoring, ensuring durability in industrial environments.
Frequently Asked Questions
Where can I buy Phoenix Contact 2902851?
You can click on the BUY or RFQ button to purchase 2902851 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2902851?
You can download the 2902851 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2902851?
Phoenix Contact
