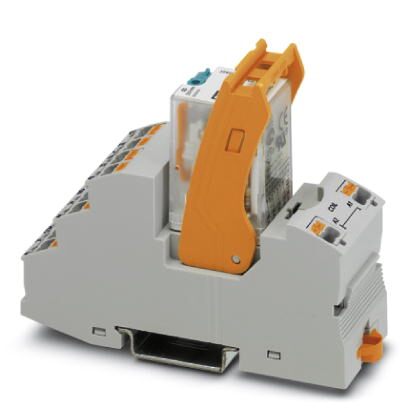

Phoenix Contact 2903308 industrial relay
The Phoenix Contact interface relay and base is a versatile, 6A, 4-Pole Double Throw relay designed for industrial automation. It operates on 24V DC power, featuring push-in connections for quick, secure wiring. The relay is compatible with DIN rail mounting, ensuring easy integration into control panels. Its robust construction supports a maximum switching voltage of 250 V AC/DC, with a mechanical life expectancy of approximately 200 million cycles. Suitable for applications requiring high reliability, it offers fast response times and effective electrical insulation, making it ideal for complex control systems.
Phoenix Contact 2903308 industrial relay Specifications:
- Dimensions: Width 31mm, Height not specified, Depth 75mm
- Operating temperature: -40°C to 60°C
- Storage temperature: -40°C to 85°C
- Input voltage: 24 V DC, typical current 42 mA
- Response time: 13 ms, Release time: 14 ms
- Contact type: 4 PDTs, Material: AgNi
- Maximum switching voltage: 250 V AC/DC
- Switching capacity: 2A at 24 V DC, 1.5A at 120 VAC
- Power dissipation: 1.01 W under nominal conditions
- Connection: Push-in terminals, stripping length 8mm, wire cross-section 0.14-1.5 mm² / AWG 26-16
- Protection: IP20 (Relay socket), mechanical life: approx. 200 million cycles
- Standards: DIN EN 50178, IEC 62103
- Overvoltage category: W, Pollution degree: 2
Buy the Phoenix Contact Series RIF-2-RPT-LDP-24DC/4X21: 2903308
Order the Phoenix Contact relay module RIF-2-RPT-LDP-24DC/4X21 online today for dependable switching in automation systems. With push-in connections, DIN rail compatibility, and high switching capacity of 250 V AC/DC, this relay ensures reliable operation over millions of cycles. Its compact dimensions and robust design make it ideal for control cabinets, machinery, and process automation. Enhance your system's efficiency now with quick online purchase for reliable, high-performance switching components tailored to your industrial needs.
Buy Phoenix Contact RIF-2-RPT-LDP-24DC/4X21 relay now and experience unmatched reliability and performance in industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact 2903308?
You can click on the BUY or RFQ button to purchase 2903308 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2903308?
You can download the 2903308 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2903308?
Phoenix Contact
