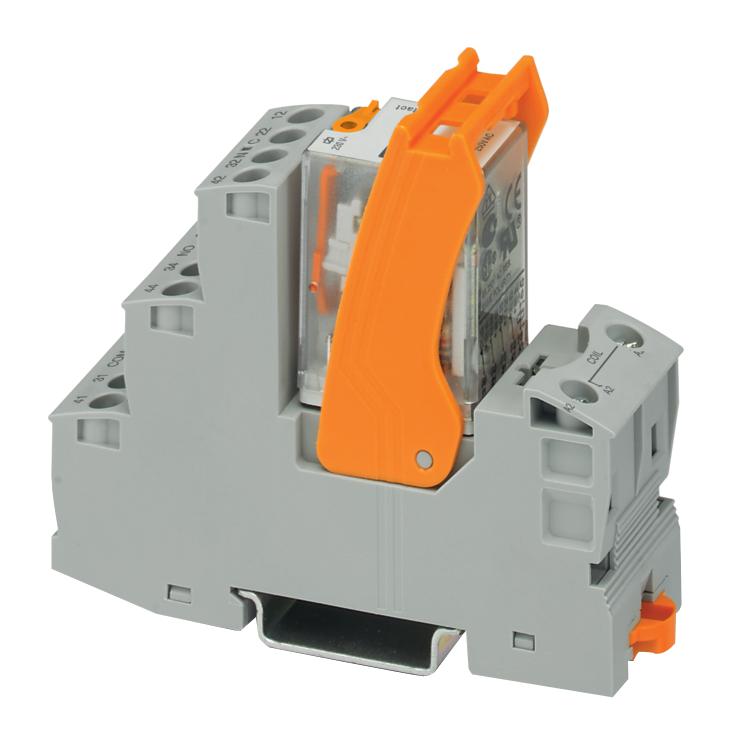

Phoenix Contact 2903316 Industrial Relay Module
The relay module features four changeover contacts with a coil voltage of 230 VAC, suitable for industrial automation. It includes a relay base, power contact relay, plugin/display/interference suppression module, and mounting bracket, all housed in a compact 27mm wide, 89mm high, and 75mm deep enclosure. Designed for reliable switching with a maximum load capacity of 250 V AC and 120 W at 24 V DC, it is ideal for control and automation applications requiring robust contact switching, surge suppression, and versatile mounting options in harsh environments.
Phoenix Contact 2903316 Industrial Relay Module Specifications:
- Dimensions: Width 27mm, Height 89mm, Depth 75mm
- Coil voltage: 230 VAC, Typical coil current: 6.5 mA
- Contact type: 4PDTs, Contact material: AgNi
- Maximum switching voltage: 250 V AC/DC, Minimum switching voltage: 5 V
- Maximum inrush current: 16 A (20 ms), Continuous current: 5 A
- Switching capacity: up to 250 V AC, 1250 VA, and various DC ratings
- Test voltage: 2.5 kV (winding/contact), 2 kV (contact/contact)
- Ambient temperature: -40°C to 50°C operational, -40°C to 85°C storage
- Degree of protection: IP20, Mounting position: Any
- Standards: DIN EN 50178, UL 94V-2 flammability, rated insulation voltage: 250 VAC
- Environmental compliance: China RoHS, service life approx. 20 million cycles
Buy the Buy Phoenix Contact Relay Module RIF-2-RSC-LV-230AC/4X21 Online
Enhance your automation setup with this reliable industrial relay module featuring four changeover contacts, 230Vac coil, and robust screw connections. Its compact design, rated load capacity up to 250V AC and diverse switching ratings ensure dependable operation in harsh industrial environments. The relay offers fast response times, surge suppression via varistor, and versatile mounting options, making it ideal for machinery, control panels, and automation systems requiring durable switching solutions for complex process control applications. Buy online today for unparalleled reliability.
Buy Phoenix Contact relay module RIF-2-RSC-LV-230AC/4X21 now and experience unmatched reliability and performance in industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact 2903316?
You can click on the BUY or RFQ button to purchase 2903316 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2903316?
You can download the 2903316 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2903316?
Phoenix Contact
