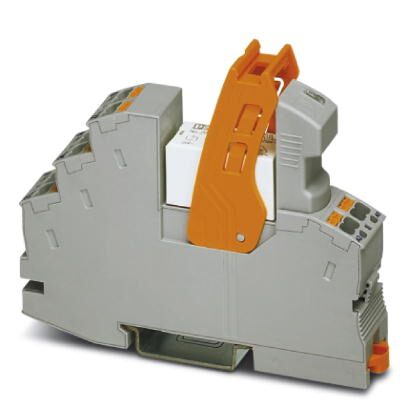

Phoenix Contact 2903332 Relay Module

Phoenix Contact 2903332 Relay Module Specifications:

• Packing unit: 1 pc
• Minimum order quantity: 10 pc
• GTIN: 4046356732291
• Weight per Piece (excluding packing): 68.000 g
• Custom tariff number: 85364900
• Country of origin: China
• Utilization restriction: EMC: class A product, see manufacturer's declaration
• Note: FBS 2-6 plug-in bridge for input side, FBS-2-8 plug-in bridge for output side
• Width: 16 mm
• Height: 93 mm
• Depth: 75 mm
• Ambient temperature (operation): -40 °C ... 50 °C
• Ambient temperature (storage/transport): -40 °C ... 85 °C
• Degree of protection: IP20 (Relay base), RT III (Relay)
• Nominal input voltage UN: 120 V AC
• Input voltage range in reference to UN: see diagram
• Mains frequency: 50/60 Hz
• Typical input current at UN: 8 mA
• Typical response time: 3 ms ... 12 ms
• Typical release time range: 3 ms ... 20 ms
• Coil voltage: 120 V AC
• Protective circuit: Varistor
• Operating voltage display: Yellow LED
• Power dissipation for nominal condition: 0.1 W
• Contact type: 2 PDT
• Type of switch contact: Single contact
• Contact material: AgNi
• Maximum switching voltage: 250 V AC/DC
• Minimum switching voltage: 5 V (at 10 mA)
• Min. switching current: 10 mA (At 5 V)
• Maximum inrush current: 12 A (20 ms, N/O contact)
• Limiting continuous current: 8 A (see diagram)
• Interrupting rating (ohmic load) max.: 192 W (at 24 V DC)
• Interrupting rating (ohmic load) max.2: 124 W (at 48 V DC)
• Interrupting rating (ohmic load) max.3: 60 W (at 60 V DC)
• Interrupting rating (ohmic load) max.4: 44 W (at 110 V DC)
• Interrupting rating (ohmic load) max.5: 57 W (at 220 V DC)
• Interrupting rating (ohmic load) max.6: 2000 VA (for 250 V AC)
• Switching capacity: 2 A (at 24 V, DC13)
• Switching capacity2: 0.2 A (at 250 V, DC13)
• Switching capacity3: 3 A (at 24 V, AC15)
• Switching capacity4: 3 A (at 120 V, AC15)
• Switching capacity5: 3 A (at 250 V, AC15)
• Test voltage relay winding/relay contact: 4 kVrms(50 Hz, 1 min.)
• Test voltage PDT/PDT: 2.5 kVrms(50 Hz, 1 min.)
• Operating mode: 100% operating factor
• Mechanical service life: approx. 10 7cycles
• Service life, electrical: see diagram
• Mounting position: any
• Assembly instructions: In rows with zero spacing
• Connection name (Coil side): Coil side
• Connection method (Coil side): Push-in connection
• Stripping length (Coil side): 8 mm
• Conductor cross section solid (Coil side): 0.14 mm² ... 1.5 mm²
• Conductor cross section flexible (Coil side): 0.14 mm² ... 1.5 mm²
• Conductor cross section AWG (Coil side): 26 ... 16 (solid)
• Conductor cross section AWG2 (Coil side): 26 ... 16 (flexible)
• Connection name (Contact side): Contact side
• Connection method (Contact side): Push-in connection
• Stripping length (Contact side): 8 mm
• Conductor cross section solid (Contact side): 0.14 mm² ... 1.5 mm²
• Conductor cross section flexible (Contact side): 0.14 mm² ... 1.5 mm²
• Standards and Regulations: DIN EN 50178
• Rated surge voltage: 6 kV
• Insulation: Safe isolation, basic insulation, and 4 kV rated surge voltage
• Pollution degree: 2
• Overvoltage category: III
• China RoHS: Environmentally Friendly Use Period = 50
