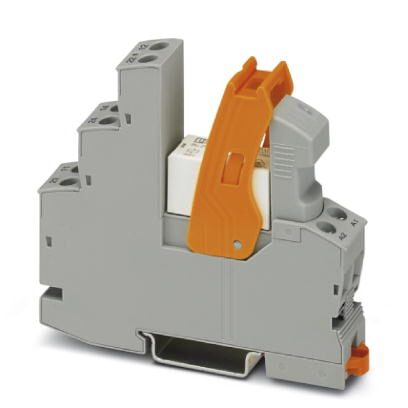

Phoenix Contact 2903348 RIF Relay Module
The PHOENIX CONTACT RIF-1-RSC-LV-120AC/2X21 relay module is a versatile and robust solution for industrial automation and control systems. This pre-assembled module combines a relay base, power contact relay, plug-in display/interference suppression module, and retaining bracket into a single, easy-to-install unit. It is designed for reliable switching applications in various industrial environments, offering 2 changeover contacts for flexible connectivity. The module's 120V AC input voltage and screw connection ensure compatibility with a wide range of systems. Its compact design allows for efficient space utilization on DIN rails, while the integrated varistor provides protection against voltage surges. The module is suitable for applications requiring frequent switching and reliable performance.
Phoenix Contact 2903348 RIF Relay Module Specifications:
- Packing unit: 1
- GTIN: 4046356732802
- Custom tariff number: 85364900
- Width: 16 mm
- Height: 89 mm
- Depth: 75 mm
- Ambient temperature (operation): -40 °C ... 50 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Nominal input voltage UN: 120 V AC
- Input voltage range: see diagram
- Typical input current at UN: 8 mA
- Typical response time: 3 ms ... 12 ms
- Typical release time: 3 ms ... 20 ms
- Coil voltage: 120 V AC
- Protective circuit: Varistor
- Operating voltage display: Yellow LED
- Contact type: 2 PDT
- Type of switch contact: Single contact
- Contact material: AgNi
- Maximum switching voltage: 250 V AC/DC
- Minimum switching voltage: 5 V (at 10 mA)
- Min. switching current: 10 mA (At 5 V)
- Maximum inrush current: 12 A (20 ms, N/O contact)
- Limiting continuous current: 8 A (see diagram)
- Interrupting rating (ohmic load) max.: 192 W (at 24 V DC)
- Switching capacity in acc. with DIN VDE 0660/IEC 60947: 2 A (at 24 V, DC13), 0.2 A (at 250 V, DC13), 3 A (at 24 V, AC15), 3 A (at 120 V, AC15), 3 A (at 250 V, AC15)
- Connection name (input): Coil side
- Connection method (input): Screw connection
- Stripping length (input): 8 mm
- Conductor cross section solid (input): 0.14 mm² ... 6 mm²
- Conductor cross section flexible (input): 0.14 mm² ... 4 mm²
- Conductor cross section AWG (input): 26 ... 10
- Connection name (output): Contact side
- Connection method (output): Screw connection
- Stripping length (output): 8 mm
- Conductor cross section solid (output): 0.14 mm² ... 6 mm²
- Conductor cross section flexible (output): 0.14 mm² ... 4 mm²
- Conductor cross section AWG (output): 26 ... 10
- Test voltage relay winding/relay contact: 4 kVrms(50 Hz, 1 min.)
- Test voltage PDT/PDT: 2.5 kVrms(50 Hz, 1 min.)
- Operating mode: 100% operating factor
- Degree of protection: IP20 (Relay socket), RT III (Relay)
- Mechanical service life: Approx. 10 7cycles
- Mounting position: any
- Standards/regulations: DIN EN 50178
- Rated surge voltage: 6 kV
- Insulation: Safe isolation, basic insulation, and 4 kV rated surge voltage between all changeover contacts.
- Degree of pollution: 2
- Overvoltage category: III
- China RoHS: Environmentally Friendly Use Period = 50
