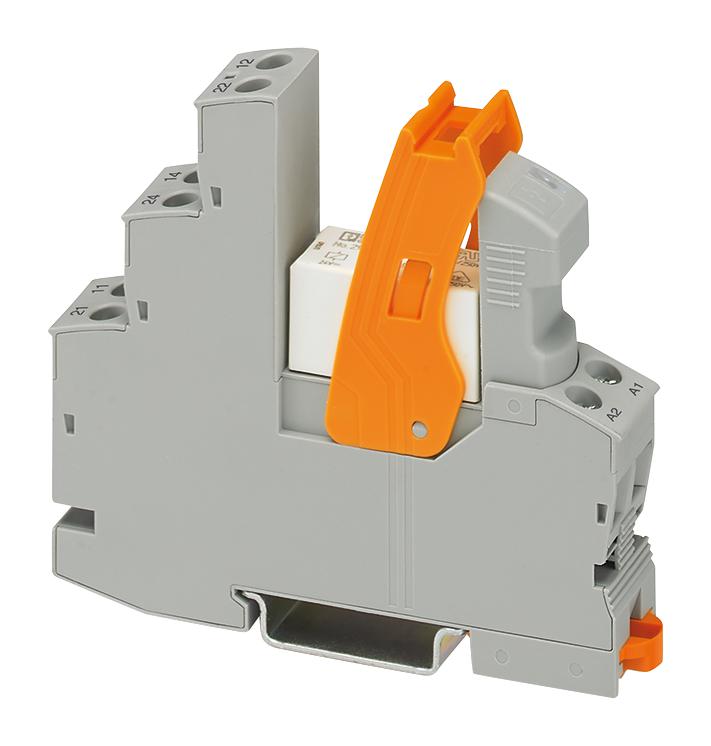

Phoenix Contact 2903354 Relay Module
This pre-assembled relay module features a screw connection with a relay base, multi-layer contact, plug-in interference suppression, and retaining bracket. Designed with a single changeover contact, it operates on 24 V DC input, offering reliable switching capacity and a response time of approximately 8 ms. Its compact dimensions of 16 mm width, 89 mm height, and 75 mm depth make it suitable for industrial automation, ensuring durable performance and easy installation with screw terminals. The module adheres to DIN EN 50178 standards and withstands ambient temperatures from -40°C to +70°C during operation.
Phoenix Contact 2903354 Relay Module Specifications:
- Dimensions: Width 16 mm, Height 89 mm, Depth 75 mm
- Input Voltage: 24 V DC
- Typical Input Current: 18 mA
- Response Time: 8 ms
- Release Time: 10 ms
- Contact Type: 1 changeover contact (1 PDT)
- Maximum Switching Voltage: 30 VAC, 36 VDC
- Minimum Switching Voltage: 100 mV at 10 mA
- Max. Switching Current: 1.2 W at 24 V DC
- Switching Capacity: 2 A at 24 V AC/DC according to IEC 60947
- Contact Material: AgNi, hard gold-plated
- Operating Temperature Range: -40°C to +70°C
- Ambient Temperature (Storage/Transport): -40°C to +85°C
- Connection: Screw terminals with 8 mm stripping length
- Standards: DIN EN 50178, UL 94 V2 flammability rating
- Pollution Degree: 2
- Overvoltage Category: III
- Protection Degree: 1P20 (Relay base)
Buy the Phoenix Contact Series RIF Series Relay: RIF-1-RSC-LDP-24DC/1X21AU
Discover the high-quality relay module RIF-1-RSC-LDP-24DC/1X21AU by Phoenix Contact. Designed for robust industrial applications, it features a changeover contact, quick screw connection, and a compact form factor. Easy to install on control panels, it ensures reliable switching and fast response times of 8 milliseconds. The module operates at 24 V DC, with a maximum switching voltage of 30 VAC and 36 VDC, and supports currents up to 2 A. Perfect for automation, control, and safety systems.
Buy Phoenix Contact RIF-1-RSC-LDP-24DC/1X21AU now and experience unmatched reliability and performance in industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact 2903354?
You can click on the BUY or RFQ button to purchase 2903354 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2903354?
You can download the 2903354 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2903354?
Phoenix Contact
