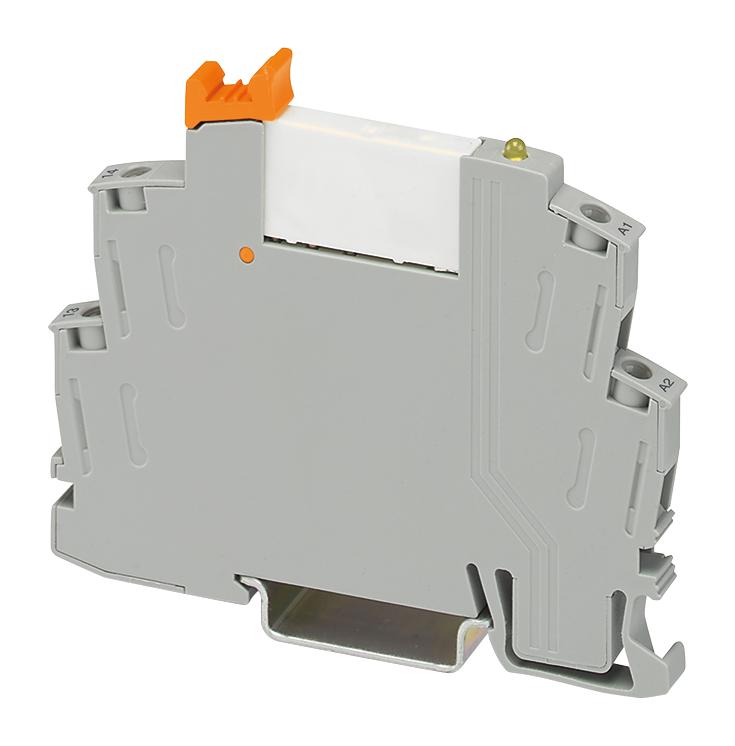

Phoenix Contact 2903366 Relay Module
The relay module features a pre-assembled design with screw terminals, a single normally open contact type, and operates at 24 V DC. It includes a relay base with ejector and power contact, a damping diode for protection, a yellow LED indicator for operation status, and a typical response time of 5 ms. Suitable for automation and control applications, it supports switching voltages up to 250 V AC/DC, with a maximum switching capacity of 140 W at 24 V DC and a service life of approximately 20 million cycles. It mounts easily on DIN rails and complies with DIN EN 50178 standards.
Phoenix Contact 2903366 Relay Module Specifications:
- Input Voltage: 24 V DC
- Response Time: 5 ms
- Release Time: 8 ms
- Contact Type: 1 N/O contact
- Contact Material: AgSnO
- Maximum Switching Voltage: 250 V AC/DC
- Minimum Switching Voltage: 5 V at 100 mA
- Minimum Switching Current: 10 mA at 12 V
- Max Inrush Current: 10 A
- Limiting Continuous Current: 6 A
- Interrupting Rating: 140 W at 24 V DC
- Switching Capacity: 1500 VA at 250 V AC
- Coil Side: Screw connection, stripping length 7 mm, conductor cross section 0.5 mm² ... 4 mm² (solid), 0.5 mm² ... 2.5 mm² (flexible)
- Power Dissipation: 0.22 W
- Operating Temperature: -40°C to 60°C
- Ambient Storage/Transport Temperature: -40°C to 85°C
- Standards: DIN EN 50178, UL V2 flammability
Buy the Phoenix Contact Series RIF-O-RSC-24DC: 2903366
Order the Phoenix Contact relay module RIF-O-RSC-24DC now and enhance your automation system. Featuring a screw connection, 24 V DC coil, single N/O contact, with high switching capacity and long service life. Easy DIN rail mounting and compliance with industry standards ensure seamless integration. Whether for control panels or industrial automation, this relay offers reliable switching with fast response times of 5 ms. Invest in quality, durability, and efficiency—buy online today for quick delivery and excellent support.
Buy Phoenix Contact RIF-O-RSC-24DC relay module now and experience unmatched reliability and performance in automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 2903366?
You can click on the BUY or RFQ button to purchase 2903366 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2903366?
You can download the 2903366 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2903366?
Phoenix Contact
