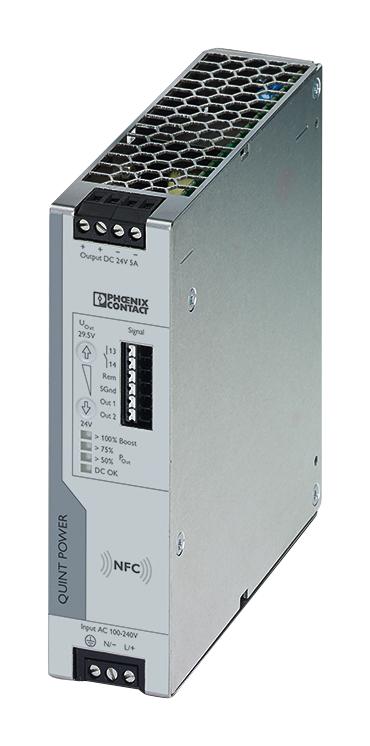

Phoenix Contact 2904600 Industrial Power Supply
The QUINT4-PS power supply unit delivers 24 V DC with a 5 A output, featuring SFB technology for selective circuit breaker trip, NFC interface for parameter adjustments, and preventive monitoring. Its robust metal housing withstands temperatures from -40°C to 70°C, ensuring high availability in industrial environments. the unit supports parallel and series connections for redundancy, offers an input range of 100-240 V AC, and complies with global standards including UL, cUL, DNV GL, and IEC. It also incorporates surge protection and broad regulatory certifications for reliable energy management.
Phoenix Contact 2904600 Industrial Power Supply Specifications:
- Input Voltage Range: 100-240 V AC, 110-250 V DC
- Input Frequency: 50-60 Hz
- Output Voltage: 24 V DC, adjustable up to 29.5 V DC
- Output Current: 5 A, Static Boost: 6.25 A, Dynamic Boost: 10 A (5s)
- Efficiency: Approx. 88.8% at 120 V AC, 89.2% at 230 V AC
- Dimensions: Width 36 mm, Height 130 mm, Depth 125 mm (standard); with alternative assembly: 122 mm × 130 mm × 39 mm
- Temperature Range: -40°C to +70°C operating, Derating above 60°C at 2.5%/K
- Protection Class: IP20
- Surge Protection: Gas-filled arrester & varistor
- Certification: UL Listed, cUL Recognized, DNV GL, PRS, CSA, ATEX Zone 2
- Mechanical Mounting: Horizontal DIN rail, optional adapters available
- Compliance: EN 61000-6-1, EN 61000-6-2, EN 61000-4 series, IEC 60950-1
Buy the Phoenix Contact Series QUINT Power Supply: 24 V DC, 5 A - 2904600
Upgrade your automation setup with the reliable Phoenix Contact QUINT4-PS power supply unit, providing 24 V DC at 5 A with advanced surge protection and NFC interface for easy parameter adjustments. Its robust metal housing and wide temperature range (-40°C to 70°C) ensure uninterrupted operation in demanding industrial environments. Supports parallel and series connections for redundancy. Complies with UL, cUL, DNV GL, and other international standards, making it ideal for critical energy management tasks. Purchase online now for quick delivery and superior energy reliability.
Get Phoenix Contact QUINT4-PS/1AC/24DC/5 power supply today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy Phoenix Contact 2904600?
You can click on the BUY or RFQ button to purchase 2904600 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2904600?
You can download the 2904600 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2904600?
Phoenix Contact
