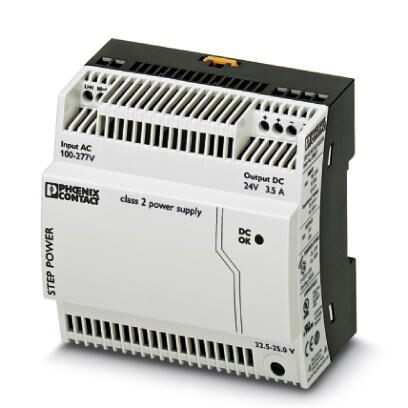

Phoenix Contact 2904945 24V DC 3.5A Power Supply
The PHOENIX CONTACT STEP-PS/277AC/24DC/3.5 is a DIN rail power supply designed for building technology applications. Its compact, flat design makes it ideal for distribution boards and control panels. The unit offers a 24V DC output voltage with various performance classes and overall widths, along with special voltages. It boasts high efficiency, low standby losses, and a wide input voltage range (100-277V AC). Key features include flexible mounting options, a high MTBF (>500,000 hours), and robust protection mechanisms. It is suitable for a wide range of industrial applications requiring a reliable and efficient power source.
Phoenix Contact 2904945 24V DC 3.5A Power Supply Specifications:
- Packing unit: 1 pc
- GTIN: 4046356903875
- Weight per Piece: 380.000 g
- Custom tariff number: 85044030
- Country of origin: Germany
- Width: 90 mm
- Height: 90 mm
- Depth: 61 mm
- Degree of protection: IP20
- Ambient temperature (operation): -25 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Max. permissible relative humidity (operation): ≤ 95 %
- Nominal input voltage range: 100 V AC ... 277 V AC
- Input voltage range: 85 V AC ... 305 V AC
- Frequency range DC: 0 Hz
- AC frequency range: 45 Hz ... 65 Hz
- Nominal output voltage: 24 V DC ±1 %
- Setting range of the output voltage: 22.5 V DC ... 25 V DC
- Nominal output current: 3.5 A
- Output current (Imax): 6 A
- Output power: 84 W
- Efficiency: > 88 %
- Insulation voltage input/output: 4 kV AC
- Protection class: II
- MTBF: > 1094000 h
- Connection method (input): Screw connection
- Conductor cross section (input): 0.2 mm² ... 2.5 mm²
- Connection method (output): Screw connection
- Conductor cross section (output): 0.2 mm² ... 2.5 mm²
