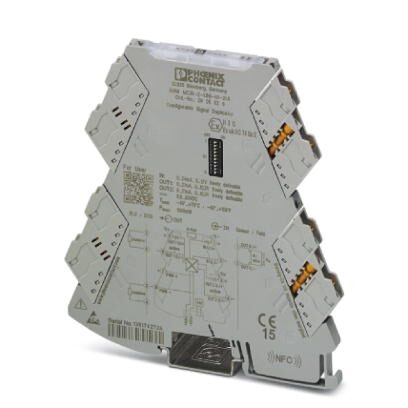

Phoenix Contact 2905026 signal duplicator
This is a universally configurable 4-way signal duplicator designed for electrical isolation and duplication of analog signals. It features plug-in connection technology for easy installation and screw connection technology for secure wiring. The device can be configured via DIP switches or software, allowing flexible setup to suit various applications.
Phoenix Contact 2905026 signal duplicator Specifications:
- Height: 110.5 mm
- Depth: 120.5 mm
- Input voltage signal: OV... 10 V via DIP switch
- Output voltage: OV... 10.5 V (can be set via software)
- Input current: 0 mA ... 24 mA (software configurable)
- Output current: 0 mA ... 21 mA (software configurable)
- Supply voltage: 9.6 V DC ... 30 V DC
- Typical current consumption: 55 mA at 24 V DC
- Ambient temperature (operation): -40°C to 70°C
- Ambient temperature (storage/transport): -40°C to 85°C
- Standards: UL Listed, cUL Listed, EAC, cULus Listed
- Dimensions: Height 110.5 mm, Depth 120.5 mm
- Connection technology: Plug-in and screw connection
- Certifications: UL, cUL, EAC, cULus
- Environmental compliance: China RoHS
Buy the Phoenix Contact Series MINI MCR-2-UNI-UI-2UI Signal Duplicator: 2905026
Purchase the Phoenix Contact Series MINI MCR-2-UNI-UI-2UI signal duplicator online and ensure your automation system has dependable signal separation and isolation. This universal 4-way device offers flexible configuration via DIP switches or software, making it suitable for various industrial applications. With plug-in connection technology and robust screw connections, installation is quick and secure. Designed for electrical isolation and duplication of analog signals, it meets international standards including UL and cUL, ensuring safety and compliance for your projects.
Order your Phoenix Contact Series MINI MCR-2-UNI-UI-2UI signal duplicator today and enjoy reliable analog signal duplication with flexible configuration and electrical isolation.
