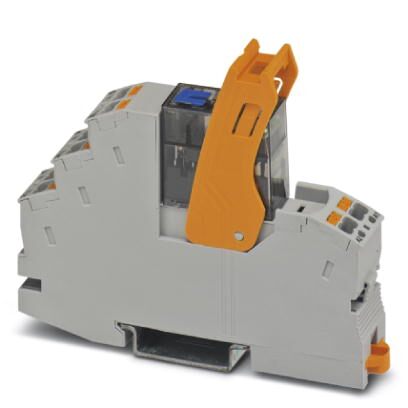

Phoenix Contact 2905289 Relay Module
This pre-assembled relay module features a push-in connection, relay base, retaining bracket, and a power contact with test button. Equipped with an integrated status LED and freewheeling diode, it provides reliable switching with a Single Pole Double Throw contact. The module operates at 24 V DC, offering high durability, easy installation, and compliance with environmental standards. Suitable for automation systems, it ensures efficient control with excellent electrical performance, mechanical life of approximately 50 million cycles, and tested for electrical safety and electromagnetic compatibility.
Phoenix Contact 2905289 Relay Module Specifications:
- Contact Type: 1 PDT (SPDT)
- Input Voltage: 24 V DC
- Test Voltage: 4 kV (relay winding/contact)
- Mechanical Service Life: approx. 50 million cycles
- Ambient Temperature (Operation): -40 °C ... 60 °C
- Ambient Temperature (Storage/Transport): -40 °C ... 85 °C
- Degree of Protection: IP20 (Relay base)
- Connection Data: 0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block), Conductor cross section: AWG 26 ... 16
- Dimensions: Suitable for NS 35/7.5 DIN rail, mounting on standard 35 mm width rail
- Standards and Regulations: EMC Class A, compliance with environmental directives including China RoHS
- Mechanical Durability: approx. 50 million switching cycles
- Test Voltage: 4 kV (50 Hz, 1 min.)
- Electrical Characteristics: Operating mode 100% operating factor, test button for manual control, integrated status LED for diagnostics
- Environmental Conditions: suitable for industrial environments with temperature and humidity variations
Buy the Phoenix Contact Series RIF-1-RPT-LDP-24DC/1X21MS: 2905289
Order the Phoenix Contact Relay Module RIF-1-RPT-LDP-24DC/1X21MS online today to ensure high performance, easy installation, and reliable switching in your automation applications. This pre-assembled module with push-in connection, relay base, and test button offers operational durability at 24 V DC, with integrated status LED and freewheeling diode for enhanced control. Perfect for industrial environments, it provides precise switching, test safety, and long mechanical life, ensuring seamless integration into your control system. Purchase now for dependable automation performance.
Get Phoenix Contact RIF-1-RPT-LDP-24DC/1X21MS today—built for precision, reliability, and long-lasting durability in automation systems.
Frequently Asked Questions
Where can I buy Phoenix Contact 2905289?
You can click on the BUY or RFQ button to purchase 2905289 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2905289?
You can download the 2905289 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2905289?
Phoenix Contact
