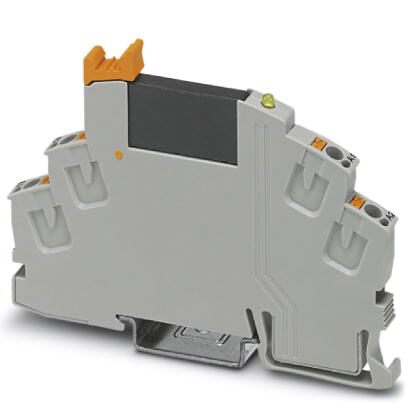

Phoenix Contact 2905293 Solid-State Relay Module
This pre-assembled solid-state relay module features a reliable push-in connection, incorporating a relay base with ejector and a miniature relay. Designed for automation and control applications, it operates at 24 V DC input, with a stable output voltage range of 3 to 33 V DC and a maximum current of 3 A. The compact and robust construction ensures easy installation on DIN rails, making it ideal for industrial environments requiring silent switching, high reliability, and vibration resistance. Suitable for machinery control, driver circuits, and automation systems, this relay module offers excellent performance and durability.
Phoenix Contact 2905293 Solid-State Relay Module Specifications:
- Input Voltage: 24 V DC
- Output Voltage Range: 3 - 33 V DC
- Maximum Output Current: 3 A
- Connection: Push-in terminal for wire cross section 0.14 mm² to 1.5 mm²
- Degree of Protection: IP20
- Ambient Temperature (Operation): -25°C to 60°C
- Ambient Temperature (Storage/Transport): -40°C to 85°C
- Standards and Regulations: CE, UL recognized
- Environmental Compliance: RoHS compliant, REACH SVHC Lead 7439-92-1
- Mechanical Dimensions: Compatible with NS 35/7.5 DIN rail, compact design for space-saving installation
Buy the Phoenix Contact Series RIF-0O-OPT-24DC/24DC/2: 2905293
Order the Phoenix Contact RIF-0O-OPT-24DC/24DC/2 solid-state relay module online today. This high-quality relay features push-in connection technology, operates at 24 V DC input, with an output range of 3 to 33 V DC and supports up to 3 A current. Its IP20 protection rating and wide temperature range make it ideal for industrial automation, machinery control, and control circuits. Enjoy fast delivery and ensure your automation systems operate reliably with this durable and compact relay module designed for demanding environments.
Buy Phoenix Contact RIF-0O-OPT-24DC/24DC/2 now and experience unmatched reliability and high-performance control switching.
Frequently Asked Questions
Where can I buy Phoenix Contact 2905293?
You can click on the BUY or RFQ button to purchase 2905293 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2905293?
You can download the 2905293 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2905293?
Phoenix Contact
