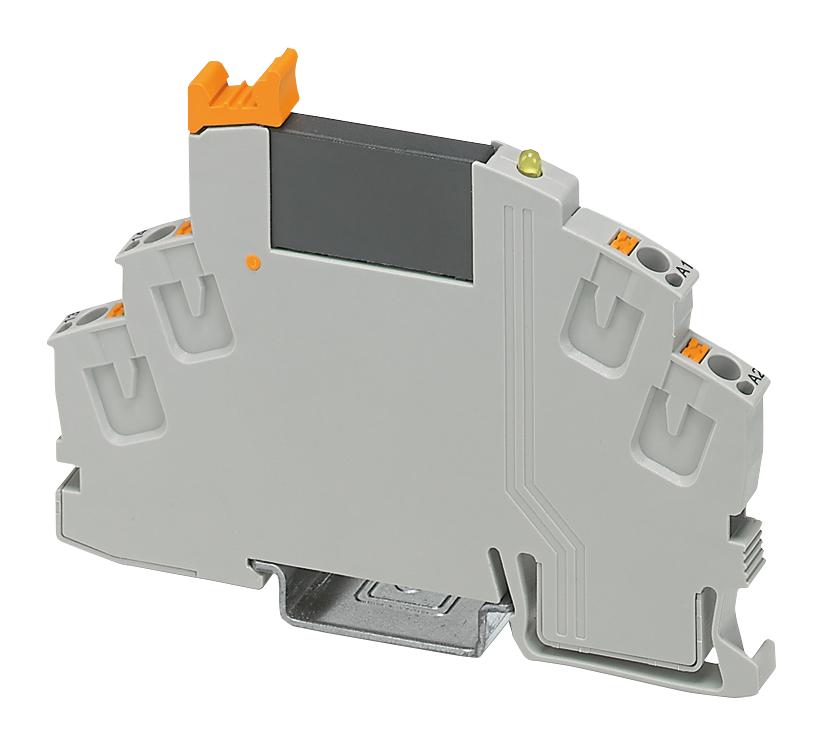

Phoenix Contact 2905295 Solid-State Relay Module
This pre-assembled solid-state relay module features push-in connection terminals, operating at 24 V DC input and capable of switching 24 to 253 V AC at 0.75A. Designed for reliable switching, it includes a relay base and miniature relay with a yellow LED status indicator. Suitable for industrial automation and control applications, it offers a compact size of 6.2mm width, with robust insulation and protection features. The module efficiently handles inrush currents up to 30 A and integrates safety standards such as IP20 degree of protection, ensuring durability in harsh environments.
Phoenix Contact 2905295 Solid-State Relay Module Specifications:
- Input voltage range: 19.2V DC ... 28.8 V DC
- Rated actuating voltage: 24 V DC
- Output voltage range: 24 VAC ... 253 VAC (50/60 Hz)
- Rated continuous current: 0.75 A
- Maximum inrush current: 30 A (10 ms)
- Leakage current: 1 mA (off state)
- Surge current: 30 AAC (tp = 20 ms, at 25°C)
- Surge voltage protection: > 275V
- Voltage drop at max limiting current: <1V
- Connection method (input/output): Push-in, 8mm stripping length
- Conductor cross section: 0.14 mm² to 1.5 mm² (solid/flexible) / AWG 24-16
- Degree of protection: IP20
- Dimensions: Width 6.2 mm, Height 93 mm, Depth 66 mm
- Ambient temperature (operation): -25°C to 60°C
- Ambient temperature (storage/transport): -40°C to 85°C
- Standards: DIN EN 50178, UL 94 V-2 flammability rating
- Rated insulation voltage: 260 VAC
- Rated surge voltage: 4 kV
- Basic insulation, pollution degree 2
Buy the Buy Phoenix Contact Solid-State Relay Module RIF-O-OPT-24DC/230AC/1 Online
Purchase the Phoenix Contact solid-state relay module RIF-O-OPT-24DC/230AC/1 online to ensure reliable, fast switching of AC loads from 24 to 253 V at 0.75A. Designed for industrial automation, it features push-in connection terminals, compact dimensions, and robust insulation. The module provides adjustable input voltage from 19.2V to 28.8V DC, with response times of 10 ms. Its high surge current capacity and protection ratings make it ideal for demanding control systems, offering effortless installation and consistent performance over long service life.
Get Phoenix Contact solid-state relay module RIF-O-OPT-24DC/230AC/1 today—built for precise switching and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy Phoenix Contact 2905295?
You can click on the BUY or RFQ button to purchase 2905295 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2905295?
You can download the 2905295 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2905295?
Phoenix Contact
