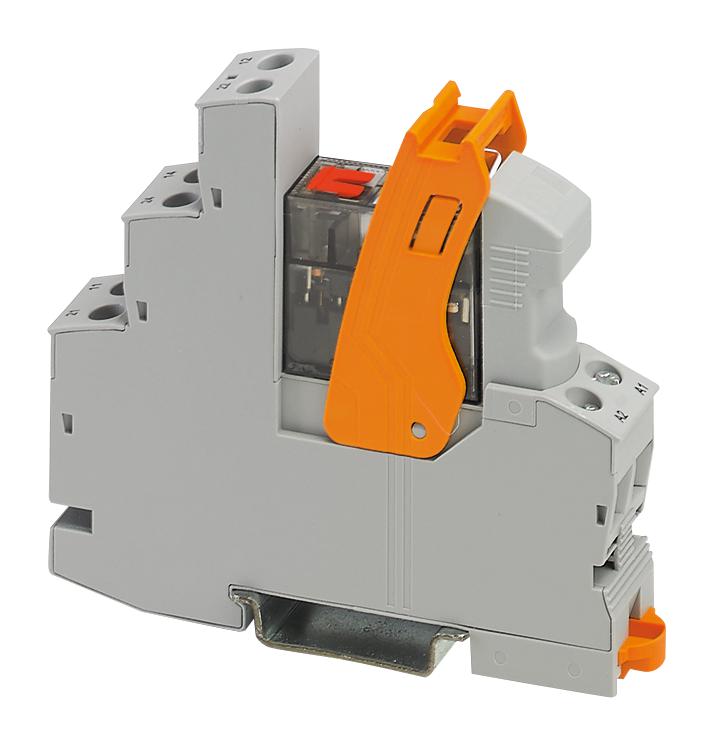

Phoenix Contact 2905661 relay module
The relay module is a compact, pre-assembled device with screw connection, suitable for controlling AC loads with 230V input. Featuring a single changeover contact, it includes a relay base, interference suppression, status LED, and test button. With dimensions of 16mm width, 89mm height, and 75mm depth, it operates reliably in ambient temperatures from -40°C to 50°C. The module supports screw connections for input and output with wire cross-sections ranging from 0.5 mm² to 4 mm², rated for 250V AC/DC switching voltage, lasting up to 5x10^6 cycles.
Phoenix Contact 2905661 relay module Specifications:
- Dimensions: 16mm width, 89mm height, 75mm depth
- Operating temperature: -40°C to 50°C
- Ambient temperature (storage/transport): -40°C to 85°C
- Input voltage: 230 V AC (50/60 Hz)
- Input current: 4.5 mA at Uy
- Response time: 4ms to 12ms
- Relay contact type: 1 changeover contact (1 PDT)
- Contact material: Silver Nickel (AgNi)
- Maximum switching voltage: 250 V AC/DC
- Minimum switching voltage: 12 V at 10 mA
- Switching current: min 10 mA at 12 V, max inrush 32 A (20 ms)
- Switching capacity: 120-2500 VA depending on voltage and load
- Connection method: screw connection with 8mm stripping length
- Conductor cross-section: solid 0.5 mm²... 4 mm², flexible 0.5 mm²... 4 mm²
- Torque: 0.5 Nm to 0.6 Nm
- Mechanical life: approx. 5 x 10^6 cycles
- Protection degree: relay base IP20, relay RT Il
- Standards: DIN EN 50178, UL 94V-0 flammability rating
- Surge voltage: 6kV
- Rated insulation voltage: 250 V AC
- Overvoltage category: II
Buy the Phoenix Contact Series RIF-1-RSC-LV-230AC/1X21MS: 2905661
Discover the reliable and compact relay module designed for automation and control applications. This 230V AC relay features a changeover contact, status LED, and screw connections for easy installation. Its dimension of 16mm width and 89mm height allows flexible mounting in various control panels. With a robust contact material and voltage capacity up to 250V AC/DC, it ensures long-lasting performance with an expected mechanical life of over 5 million cycles. Perfect for industrial automation where durability and precision are critical.
Order your Phoenix Contact Series RIF-1-RSC-LV-230AC/1X21MS relay module today and give your automation projects the dependable control and durability they need.
