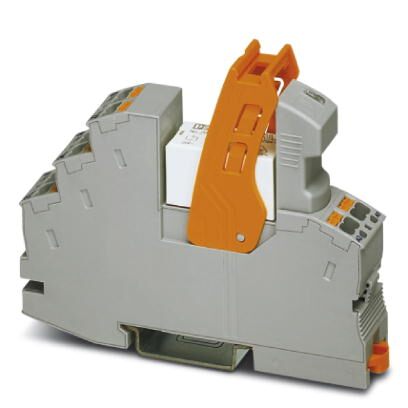

Phoenix Contact 2906223 industrial relay module
This pre-assembled relay module features push-in connections and includes a relay base, power contact relay, plug-in display/suppressor module, and retaining bracket. It offers reliable switching with two Form C (DPDT) contacts and operates at an input voltage of 12 V DC. Suitable for industrial automation, it provides durable contact switching, robust construction, and compliance with industry standards. Its compact design ensures ease of installation in control panels, with an IP20 degree of protection on the relay base, making it ideal for demanding environments requiring precise relay control and safety.
Phoenix Contact 2906223 industrial relay module Specifications:
- Dimensions: Standard relay module with compact size, relay base with IP20 protection
- Input voltage: 12 V DC
- Contact type: 2 Form C (DPDT)
- Contact voltage: Up to 250 V AC or 30 V DC
- Contact current: Max 10 A per contact
- Test voltage relay contact: 4 kV for 1 min
- Operating temperature: -40°C to 70°C
- Ambient temperature storage: -40°C to 85°C
- Degree of protection: IP20 (relay base)
- Connection: Push-in terminal with ferrule range from 0.14 mm² to 1.5 mm²
- Standards: DIN EN 50178, compliant with industry regulations
- Material: Robust plastic housing, copper contacts
- Approvals: EAC, Ex approvals
- Mounting: Compatible with NS 35/7.5 and NS 35/15 DIN rails
Buy the Buy Phoenix Contact Relay Module Part Number 2906223 Online
Purchase the Phoenix Contact relay module online today and equip your automation system with a dependable, industry-approved, and easy-to-install relay solution. Featuring push-in connections, DPDT contacts, and a compact design, it offers excellent switching capabilities at 12 V DC. This relay module is built for durability, with safety features like test voltage of 4 kV and IP20 protection. Trust our online store for fast delivery, competitive pricing, and expert support to optimize your control panel and automation setups efficiently.
Order your Phoenix Contact relay module Part number 2906223 today and ensure reliable switching with its robust design and industry compliance for demanding automation projects.
