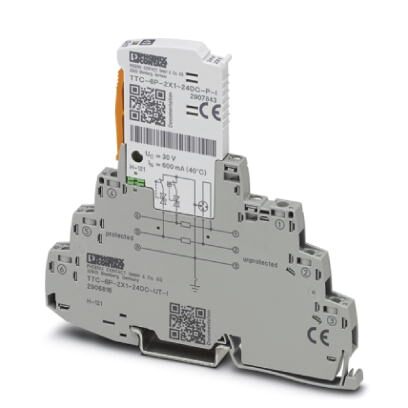

Phoenix Contact 2906810 Surge Protection Device
The Phoenix Contact TTC-6P-2X1-24DC-UT-I surge protection device provides robust protection for signal wires in industrial applications. Its compact design minimizes space requirements, while the mechanical status indicator allows for signaling without the need for additional power. The device features impedance-neutral insertion and removal of protective plugs, ensuring error-free replacement, and incorporates a disconnect device for safe overload handling. It is suitable for DIN rail mounting and offers a wide range of approvals for various applications.
Phoenix Contact 2906810 Surge Protection Device Specifications:
- Housing material: PBT
- Flammability rating according to UL 94: V-0
- Color: traffic grey A RAL 7042, light gray RAL 7035
- Mounting type: DIN rail: TH 35 - 7.5 mm
- Type: DIN rail module, two-section, divisible
- Direction of action: Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground
- IEC test classification: C1, C2, C3, D1
- Nominal voltage UN: 24 V DC
- Maximum continuous voltage UC: 30 V DC
- Rated current: 600 mA (56 °C)
- Operating effective current ICat UC: ≤ 5 µA
- Residual current IPE: ≤ 10 µA
- Nominal discharge current In(8/20) µs (line-earth): 5 kA
- Pulse discharge current Iimp(10/350) µs (line-earth): 0.5 kA
- Total discharge current Itotal(8/20) µs: 10 kA
- Voltage protection level Up(line-earth): ≤ 140 V (C1 - 1 kV/500 A), ≤ 190 V (C2 - 10 kV / 5 kA), ≤ 45 V (C3 - 25 A), ≤ 50 V (C3 - 100 A)
- Voltage protection level Upstatic (line-earth): ≤ 55 V (C1 - 1 kV/500 A), ≤ 120 V (C2 - 10 kV / 5 kA)
- Response time tA(line-earth): ≤ 1 ns
- Input attenuation aE, asym.: typ. 0.3 dB (≤ 270 kHz/150 Ω)
- Cut-off frequency fg (3 dB), asym. (PE) in 150 Ohm system: typ. 960 kHz
- Capacity (line-earth): typ. 2.2 nF
- Resistance in series: 1.65 Ω ±20 %
- Surge protection fault message: optical
- Max. required back-up fuse: 630 mA (FF)
- Impulse durability (line-earth): C1 - 1 kV/500 A, C2 - 10 kV/5 kA, C3 - 100 A, D1 - 500 A
- Pulse reset time (line-earth): ≤ 300 ms
- Max. total discharge current Itotal max(8/20) µs: 20 kA (1x)
- Connection method: Screw connection
- Screw thread: M3
- Tightening torque: 0.5 Nm ... 0.6 Nm
- Stripping length: 8 mm
- Conductor cross section flexible: 0.2 mm² ... 2.5 mm²
- Conductor cross section solid: 0.2 mm² ... 4 mm²
- Conductor cross section AWG: 24 ... 12
- Height: 105.8 mm
- Width: 6.2 mm +0.1 mm
- Depth: 100 mm (incl. DIN rail 7.5 mm)
- Ambient temperature (operation): -40 °C ... 85 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: ≤ 4000 m (amsl)
- Degree of protection: IP20
