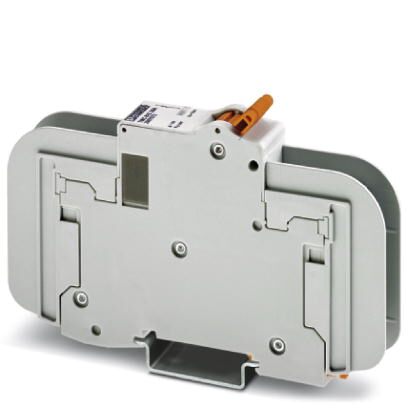

Phoenix Contact 2907565 Thermomagnetic Device Circuit Breaker
The Phoenix Contact TMC 81C 08A thermomagnetic device circuit breaker provides reliable overcurrent and short-circuit protection in a compact design. Designed for DIN rail mounting (35mm), it features a width of 17.6mm and a height of 116mm. With a rated current of 8A and a short-circuit switching capacity of 10kA, this circuit breaker is suitable for a wide range of industrial applications, including power distribution, control panels, and machinery. It operates on 120V AC (up to 277V AC) or 60V DC and is UL Listed for enhanced safety and performance. The device's thermomagnetic technology ensures quick and effective response to overcurrent conditions, protecting connected equipment and minimizing downtime.
Phoenix Contact 2907565 Thermomagnetic Device Circuit Breaker Specifications:
- Mounting type: DIN rail: 35 mm
- Color: gray
- Number of positions: 1
- Operating voltage: 120 V AC (277 V AC) / 60 V DC
- Rated current IN: 8 A
- Rated short-circuit switching capacity Icn: 10 kA (IC)
- Width: 17.6 mm
- Height: 116 mm
- Depth: 65.7 mm
- Ambient temperature (operation): -35 °C ... 70 °C
- Standards and Regulations: UL 489 IEC 60947-2
- eCl@ss 4.0: 27141116
- eCl@ss 4.1: 27141116
- eCl@ss 5.0: 27141116
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141116
- eCl@ss 8.0: 27141116
- eCl@ss 9.0: 27141116
- ETIM 3.0: EC000899
- ETIM 4.0: EC000899
- ETIM 5.0: EC000899
- ETIM 6.0: EC000899
- ETIM 7.0: EC000899
- UNSPSC 6.01: 30211812
- UNSPSC 7.0901: 39121411
- UNSPSC 11: 39121411
- UNSPSC 12.01: 39121411
- UNSPSC 13.2: 39121620
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 150.000 g
- Custom tariff number: 85362010
- Country of origin: China
- UL Listed: FILE E 320373
- cUL Listed: FILE E 320373
- cULus Listed: FILE E 320373
