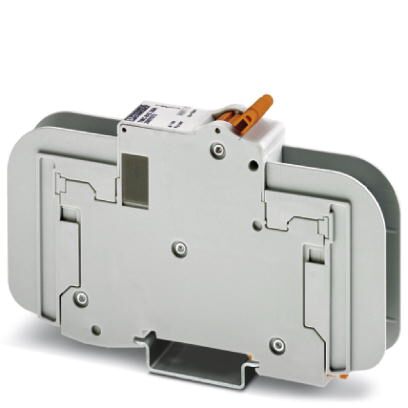

Phoenix Contact 2907571 Thermomagnetic Device Circuit Breaker
The Phoenix Contact TMC 81C 15A thermomagnetic device circuit breaker offers reliable overcurrent protection in a compact design. Designed for DIN rail mounting on 35mm rails, this circuit breaker features a 17.6mm width and a gray color. It operates with an operating voltage of 120V AC (up to 277V AC) or 60V DC, and boasts a rated short-circuit switching capacity of 10kA. Suitable for a wide range of industrial applications, the TMC 81C 15A ensures the safety and longevity of electrical systems by quickly interrupting circuits experiencing overloads or short circuits. It is UL Listed and compliant with IEC 60947-2 standards.
Phoenix Contact 2907571 Thermomagnetic Device Circuit Breaker Specifications:
- Packing unit: 1 pc
- GTIN: 4055626214870
- Weight per Piece (excluding packing): 140.000 g
- Custom tariff number: 85362010
- Country of origin: China
- Mounting type: DIN rail: 35 mm
- Color: gray
- Number of positions: 1
- Operating voltage: 120 V AC (277 V AC), 60 V DC
- Rated current IN: 15 A
- Rated short-circuit switching capacity Icn: 10 kA (IC)
- Width: 17.6 mm
- Height: 116 mm
- Depth: 65.7 mm
- Ambient temperature (operation): -35 °C ... 70 °C
- Standards and Regulations: UL 489 IEC 60947-2
- eCl@ss 4.0: 27141116
- eCl@ss 4.1: 27141116
- eCl@ss 5.0: 27141116
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141116
- eCl@ss 8.0: 27141116
- eCl@ss 9.0: 27141116
- ETIM 3.0: EC000899
- ETIM 4.0: EC000899
- ETIM 5.0: EC000899
- ETIM 6.0: EC000899
- ETIM 7.0: EC000899
- UNSPSC 6.01: 30211812
- UNSPSC 7.0901: 39121411
- UNSPSC 11: 39121411
- UNSPSC 12.01: 39121411
- UNSPSC 13.2: 39121620
- UL Listed: FILE E 320373
- cUL Listed: FILE E 320373
- cULus Listed: FILE E 320373
