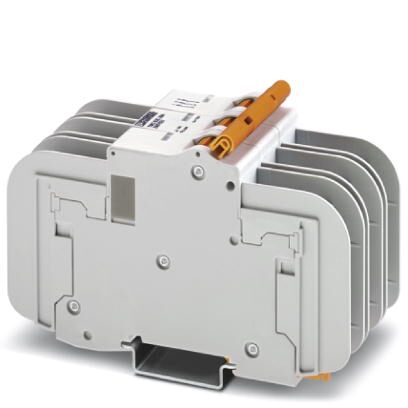

Phoenix Contact 2907608 Thermomagnetic Device Circuit Breaker
The Phoenix Contact TMC 83C 02A thermomagnetic device circuit breaker provides reliable overcurrent protection in a compact design. Mounting onto a DIN rail, this circuit breaker is ideal for industrial control panels and distribution boards. With a rated current of 2A and a short-circuit switching capacity of 10kA, it effectively protects circuits from overload and short circuits. The device is UL Listed, ensuring compliance with recognized safety standards. Its three-position design allows for easy visual indication of tripped status, contributing to enhanced system safety and maintenance.
Phoenix Contact 2907608 Thermomagnetic Device Circuit Breaker Specifications:
- Mounting type: DIN rail
- Color: gray
- Number of positions: 3
- Operating voltage: 240 V AC (277/480Y, 240D)
- Rated current IN: 2 A
- Rated short-circuit switching capacity Icn: 10 kA (IC)
- Height: 116 mm
- Width: 52.9 mm
- Depth: 65.7 mm
- Ambient temperature (operation): -35 °C ... 70 °C
- Standards and Regulations: UL 489 IEC 60947-2
- Packing unit: 1 pc
- GTIN: 4055626216027
- Weight per Piece (excluding packing): 425.000 g
- Country of origin: China
- eCl@ss 4.0: 27141116
- eCl@ss 4.1: 27141116
- eCl@ss 5.0: 27141116
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141116
- eCl@ss 8.0: 27141116
- eCl@ss 9.0: 27141116
- ETIM 3.0: EC000899
- ETIM 4.0: EC000899
- ETIM 5.0: EC000899
- ETIM 6.0: EC000899
- ETIM 7.0: EC000899
- UNSPSC 6.01: 30211812
- UNSPSC 7.0901: 39121411
- UNSPSC 11: 39121411
- UNSPSC 12.01: 39121411
- UNSPSC 13.2: 39121620
